75 Shore A
Very good
Very good
Very good
Tread: Chemically reacted, high-quality polyurethane elastomer with a hardness of 75 ± 3 Shore A provides excellent floor protection, quiet operation, low rolling resistance, high cut and tear resistance, non-marking and non-staining properties, and excellent adhesion to the wheel core.
Wheel Core: Available in 45# steel, cast iron, die-cast aluminum alloy, stainless steel, and other metal materials depending on the operating conditions. Surface treatment options include painting, phosphating, galvanizing, and Dacromet.
Other Features: Corrosion resistant to various corrosive substances. Operating temperature: -30°C to +70°C, temporarily up to +90°C. Load capacity is reduced above +40°C.

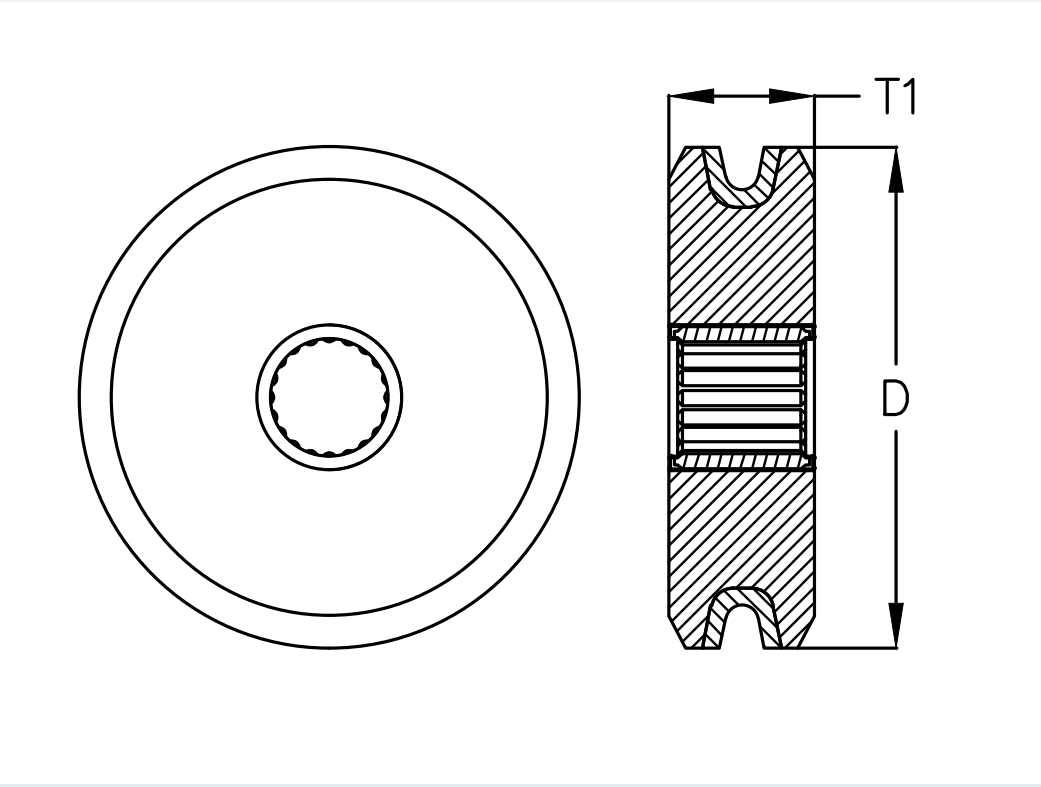

| Single Wheel | Single Wheel Diameter （D）mm |
Single Wheel Width （T1）mm |
Load Capacity KG |
|||||||||||||||
| Customized Rigid Caster | 50 | 15 | 130 | |||||||||||||||
The advantage of polyurethane lies in the fact that by adjusting the polyurethane formula, one can change its hardness, color, friction coefficient, etc., to achieve the effects of noise reduction, anti-static, and ground protection. Its long lifespan and low maintenance costs make it have a high overall cost-effectiveness. Various environments can be used, such as food-grade (without pollution), conductive-grade (for electronic workshops), and high-load (for port equipment).
We can customize the corresponding polyurethane wheels according to your requirements. Under normal circumstances, the maximum load can reach 10T and the maximum speed can reach 10 kilometers per hour.
Yes, we can adjust the polyurethane formula to meet different requirements.
The hardness range of polyurethane materials usually falls between Shore 70A and Shore 100D. High-hardness polyurethane materials have better load-bearing capacity and wear resistance, while low-hardness polyurethane materials offer better ground protection and noise reduction effects.
All the parameters can be customized according to your needs.
We support e.g., aluminum, steel, nylon cores
The minimum order quantity is 10 pieces. The delivery time is usually 25 days.
We support the proofing process, but we require you to pay the corresponding fees.
If delamination or cracking occurs within 24 months, we will provide a free replacement.
