75 Shore A
Very good
Very good
Very good
Tread: Chemically reacted, high-quality polyurethane elastomer with a hardness of 75 ± 3 Shore A provides excellent floor protection, quiet operation, low rolling resistance, high cut and tear resistance, non-marking and non-staining properties, and excellent adhesion to the wheel core.
Wheel Core: Available in 45# steel, cast iron, die-cast aluminum alloy, stainless steel, and other metal materials depending on the operating conditions. Surface treatment options include painting, phosphating, galvanizing, and Dacromet.
Other Features: Corrosion resistant to various corrosive substances. Operating temperature: -30°C to +70°C, temporarily up to +90°C. Load capacity is reduced above +40°C.

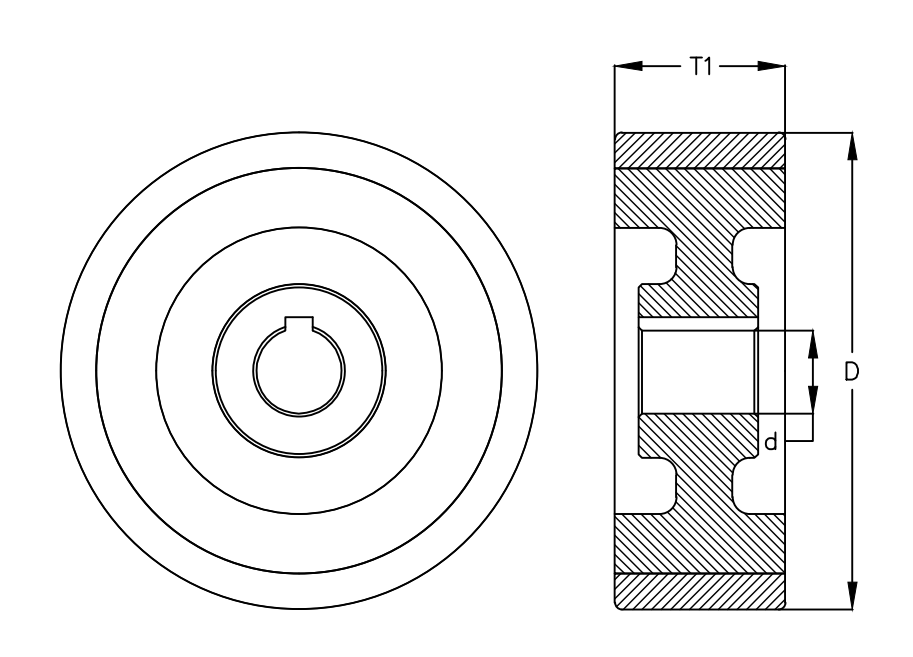

| Single wheel | Wheel diameter (D) mm | Wheel width (T2) mm | Load capacity at 4 km/h (kg) | Load capacity at 10 km/h (kg) | Axle diameter | Hub keyway width | Hub keyway height | Hub length | ||||||||||
| GEJB 75/40 | 75 | 40 | 200 | / | Customization Available | |||||||||||||
| GEJB 100/40 | 100 | 40 | 250 | / | Customization Available | |||||||||||||
| GEJB 125/50 | 125 | 50 | 400 | 160 | Customization Available | |||||||||||||
| GEJB 150/50 | 150 | 50 | 500 | 200 | Customization Available | |||||||||||||
| GEJB 200/50 | 200 | 50 | 700 | 280 | Customization Available | |||||||||||||
| GEJB 300/80 | 300 | 80 | 1600 | 640 | Customization Available | |||||||||||||
| GEJB 400/80 | 400 | 80 | 2100 | 840 | Custom sizes available | |||||||||||||
| Other sizes available upon request | ||||||||||||||||||
