75 Shore A
Very good
Very good
Very good

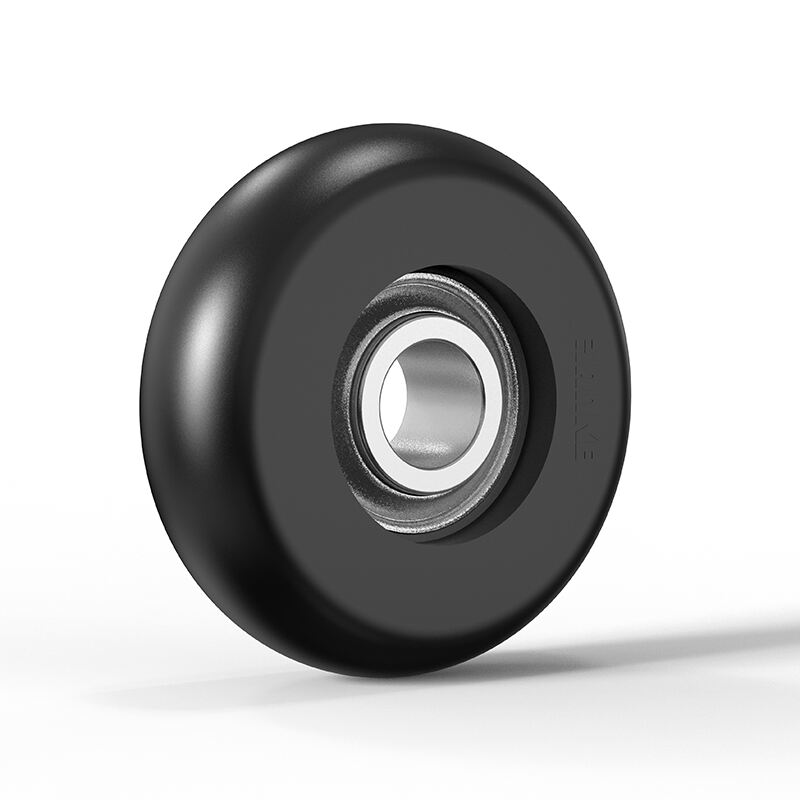

Tread: High-quality polyurethane elastomer cast by chemical reaction, hardness of 75±3 Shore A, very good floor protection, low noise operation, low rolling resistance, high resistance to cutting and tearing, no marks, no staining, excellent bonding effect with wheel core.
Wheel core: 45# steel, cast iron, die-cast aluminum alloy, stainless steel and other metal materials can be selected according to working conditions; surface treatment can be selected from spray painting, phosphating, galvanizing, Dacromet, etc.
Other characteristics: corrosion resistance to various corrosive substances; working temperature: -30°C to +70°C, short-term up to +90°C, load capacity reduced above +40°C
| Driven Wheel | Single Wheel Diameter (D) mm |
Single Wheel Width (T2) mm |
Load Capacity at 4KM (kg) |
Load Capacity at 10KM (kg) |
Quantity of Mounting Holes | Mounting Hole Diameter (d2) [mm] |
Center Hole Diameter (d) [mm] |
PCD (d1) [mm] |
|||||||||||||
| VSB 75/40 | 75 | 40 | 200 | / | Customization Acceptable | ||||||||||||||||
| VSB 100/40 | 100 | 40 | 250 | / | Customization Acceptable | ||||||||||||||||
| VSB 125/50 | 125 | 50 | 400 | 150 | Customization Acceptable | ||||||||||||||||
| VSB 160/50 | 160 | 50 | 550 | 220 | Customization Acceptable | ||||||||||||||||
| VSB 180/50 | 180 | 50 | 620 | 245 | Customization Acceptable | ||||||||||||||||
| VSB 200/50 | 200 | 50 | 700 | 275 | Customization Acceptable | ||||||||||||||||
| VSB 200/80 | 200 | 80 | 1000 | 400 | Customization Acceptable | ||||||||||||||||
| VSB 250/80 | 250 | 80 | 1200 | 475 | Customization Acceptable | ||||||||||||||||
| VSB 300/80 | 300 | 80 | 1600 | 620 | Customization Acceptable | ||||||||||||||||
| VSB 360/75 | 360 | 75 | 1700 | 675 | Customization Acceptable | ||||||||||||||||
| VSB 400/80 | 400 | 80 | 2100 | 680 | Customization Acceptable | ||||||||||||||||
| For other sizes, please contact us for inquiry | |||||||||||||||||||||
The advantage of polyurethane lies in the fact that by adjusting the polyurethane formula, one can change its hardness, color, friction coefficient, etc., to achieve the effects of noise reduction, anti-static, and ground protection. Its long lifespan and low maintenance costs make it have a high overall cost-effectiveness. Various environments can be used, such as food-grade (without pollution), conductive-grade (for electronic workshops), and high-load (for port equipment).
We can customize the corresponding polyurethane wheels according to your requirements. Under normal circumstances, the maximum load can reach 10T and the maximum speed can reach 10 kilometers per hour.
Yes, we can adjust the polyurethane formula to meet different requirements.
The hardness range of polyurethane materials usually falls between Shore 70A and Shore 100D. High-hardness polyurethane materials have better load-bearing capacity and wear resistance, while low-hardness polyurethane materials offer better ground protection and noise reduction effects.
All the parameters can be customized according to your needs.
We support e.g., aluminum, steel, nylon cores
The minimum order quantity is 10 pieces. The delivery time is usually 25 days.
We support the proofing process, but we require you to pay the corresponding fees.
If delamination or cracking occurs within 24 months, we will provide a free replacement.
