TEB Series -Polyurethane Bearing Wheels

Polyurethane bearing with Eamflex polyurethane tread

Tread Encapsulation Hardness

93 Shore A
Protect the ground/walking noise

good
Rolling resistance

Very good
Wear resistance capacity

Outstanding

Introduction


Tread: The high-quality polyurethane elastomer cast through chemical reaction has A hardness of 93±3 Shore A. It has low walking noise, small rolling resistance, protects the ground, is highly wear-resistant, has high resistance to cutting and tearing, leaves no marks, does not stain, and has an excellent bonding effect with the wheel core.

Wheel core: The bearing brand can be specified, with C&U as the default

Other features: Resistant to corrosion by various corrosive substances; Operating temperature: -30°C to +70°C, short-term up to +90° C. Load capacity decreases above +40°C

Technical parameters

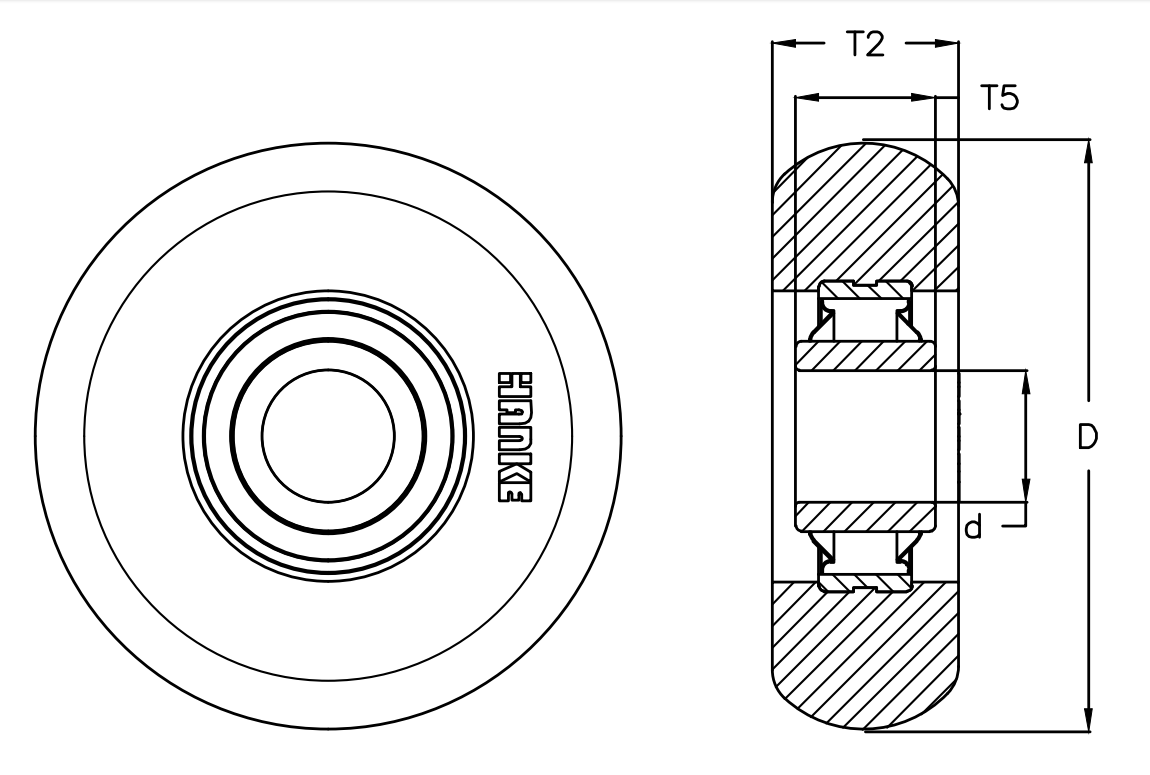

Shaft-mounted Rubber Wheels	Wheel Diameter (D) mm	Wheel Width (T2) mm	Load Capacity (kg)	Ball Bearing	Shaft Hole Diameter (d) mm	Clamping Length (T5) mm
TEB 40*13/10-8K	40	13	60	6000-2RS	10	8
TEB 50*15/10-8K	50	15	85	6000-2RS	10	8
TEB 50*25/12-10K	50	25	140	6201-2RS	12	10
TEB 70*20/20-12K	70	20	160	6004-2RS	20	12
TEB 80*20/20-14K	80	20	180	6204-2RS	20	14
TEB 90*25/20-15K	90	25	260	6304-2RS	20	15
TEB 110*25/25-15K	110	25	275	6205-2RS	25	15
TEB 125*30/25-15K	125	30	375	6205-2RS	25	15
Other sizes are available upon request
