93 Shore A
good
Very good
Outstanding
Tread: High-quality polyurethane elastomer cast through chemical reaction, with a hardness of 93±3 Shore A. It features low walking noise, low rolling resistance, ground protection, excellent wear resistance, high cut and tear resistance, and is non-marking, non-staining, and has excellent adhesion to the wheel hub.
Wheel Hub: Available in 45# steel, cast iron, die-cast aluminum alloy, stainless steel, and other metal materials depending on the working conditions; surface treatments include painting, phosphating, galvanizing, and Dacromet coating.
Other Characteristics: Resistant to various corrosive substances; operating temperature: -30°C to +70°C, short-term up to +90°C; load capacity decreases above +40°C.

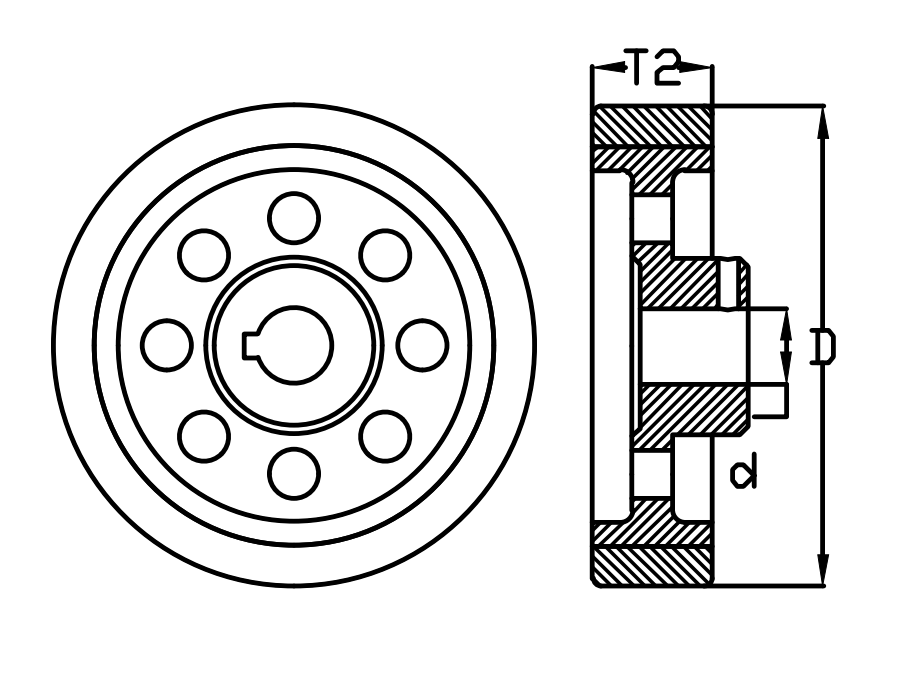

| Single Wheel | Wheel Diameter | Wheel Width | Load Capacity at 4km/h | Load Capacity at 10km/h (kg) | Mounting Hole Shape | Number of Mounting Holes | Mounting Hole Size | |||||||||||
| (D) mm | (T2) mm | (kg) | ||||||||||||||||
| GEFF 250*50 | 250 | 50 | 1250 | 620 | Customization Acceptable | |||||||||||||
| GEFF 250*60 | 250 | 60 | 1500 | 750 | Customization Acceptable | |||||||||||||
| GEFF 300*45 | 300 | 45 | 1300 | 650 | Customization Acceptable | |||||||||||||
| GEFF 300*80 | 300 | 80 | 2400 | 1200 | Customization Acceptable | |||||||||||||
| GEFF 300*100 | 300 | 100 | 3000 | 1500 | Customization Acceptable | |||||||||||||
| GEFF 360*75 | 360 | 75 | 2500 | 1250 | Customization Acceptable | |||||||||||||
| GEFF 360*100 | 360 | 100 | 3600 | 1800 | Customization Acceptable | |||||||||||||
| GEFF 400*80 | 400 | 80 | 3000 | 1500 | Customization Acceptable | |||||||||||||
| GEFF 400*125 | 400 | 125 | 5000 | 2500 | Customization Acceptable | |||||||||||||
| GEFF 500*100 | 500 | 100 | 5000 | 2500 | Customization Acceptable | |||||||||||||
| GEFF 600*125 | 600 | 125 | 10000 | 5000 | Customization Acceptable | |||||||||||||
| GEFF 600*200 | 600 | 200 | 12000 | 6000 | Customization Acceptable | |||||||||||||
| GEFF 750*200 | 750 | 200 | 15000 | 7500 | Customization Acceptable | |||||||||||||
| GEFF 1000*300 | 1000 | 300 | 30000 | 15000 | Customization Acceptable | |||||||||||||
| Other Sizes Available Upon Request | ||||||||||||||||||
The advantage of polyurethane lies in the fact that by adjusting the polyurethane formula, one can change its hardness, color, friction coefficient, etc., to achieve the effects of noise reduction, anti-static, and ground protection. Its long lifespan and low maintenance costs make it have a high overall cost-effectiveness. Various environments can be used, such as food-grade (without pollution), conductive-grade (for electronic workshops), and high-load (for port equipment).
We can customize the corresponding polyurethane wheels according to your requirements. Under normal circumstances, the maximum load can reach 10T and the maximum speed can reach 10 kilometers per hour.
Yes, we can adjust the polyurethane formula to meet different requirements.
The hardness range of polyurethane materials usually falls between Shore 70A and Shore 100D. High-hardness polyurethane materials have better load-bearing capacity and wear resistance, while low-hardness polyurethane materials offer better ground protection and noise reduction effects.
All the parameters can be customized according to your needs.
We support e.g., aluminum, steel, nylon cores
The minimum order quantity is 10 pieces. The delivery time is usually 25 days.
We support the proofing process, but we require you to pay the corresponding fees.
If delamination or cracking occurs within 24 months, we will provide a free replacement.
