▎Key Data at a Glance

I. Why Does a PU Bonded Wheel Need 13 Manufacturing Steps?

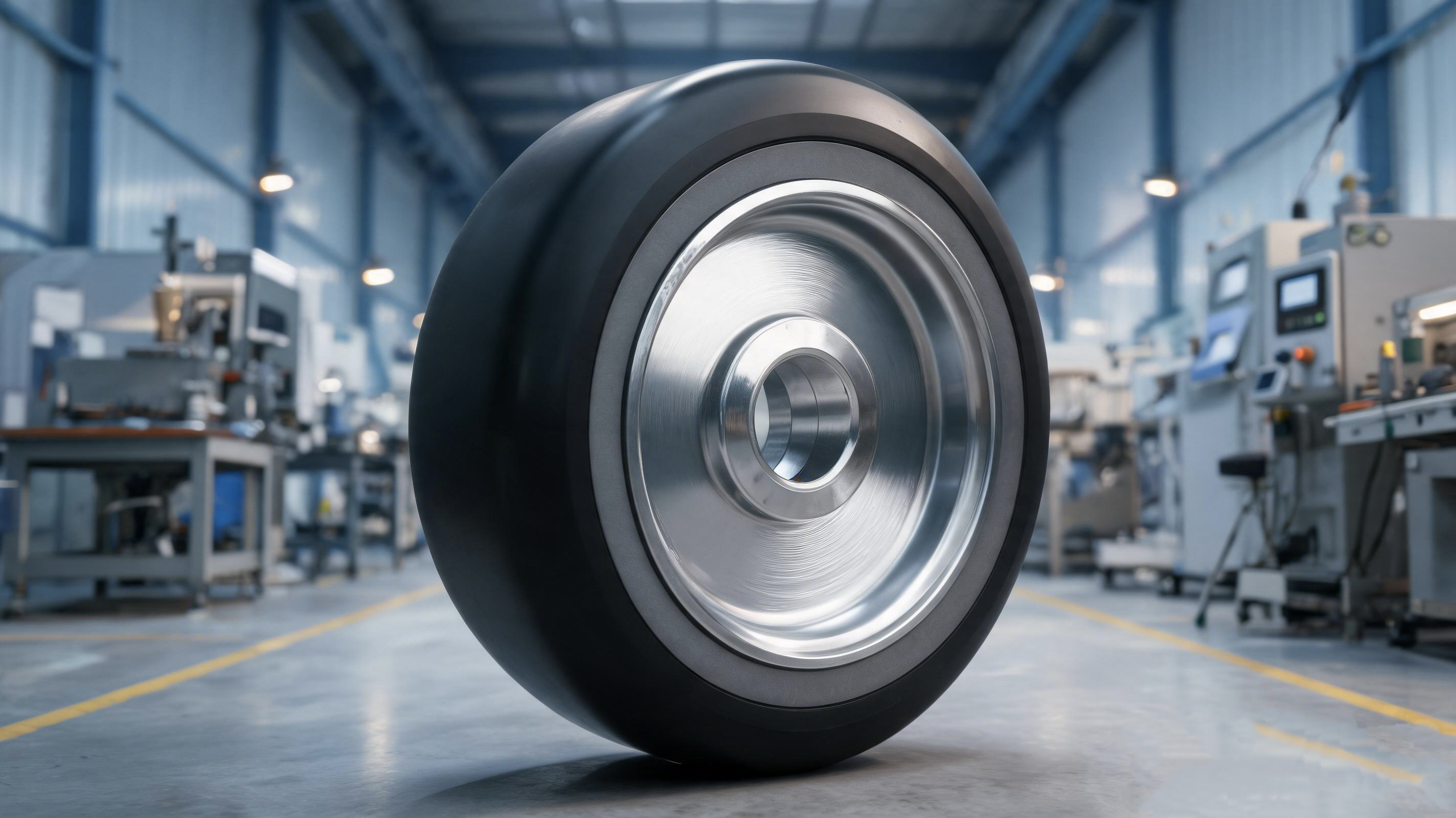

The core structure of a polyurethane bonded wheel is simple — an outer layer of polyurethane elastomer tread bonded to an inner metal hub (45# steel, cast iron, or aluminum alloy). However, making these two completely different materials "fuse into one" — without delamination or debonding under sustained working loads — demands a precise, full-spectrum manufacturing process.

Many procurement professionals focus only on hardness ratings and visual appearance when selecting bonded wheel suppliers. In reality, 90% of quality differences come from invisible process steps: Has the hub surface been shot-blasted to spec? Is the adhesive coating uniformity monitored online? Is the casting ratio stable? These "hidden steps" are the real determinants of bonded wheel service life.

The establishment of a 13-step process system, combined with ISO 9001 quality management certification, provides the foundation for standardizing and documenting every operation. The following is a complete process walkthrough.

II. Detailed Breakdown of the 13 Steps

Step 1: Incoming Inspection

Every batch of metal hubs and polyurethane raw materials must pass incoming inspection before entering the warehouse. Metal hub inspection items include: material grade verification (45# steel / cast iron / aluminum alloy), visual inspection (no sand holes, cracks, or burrs), and dimensional sampling. Polyurethane raw material inspection includes: prepolymer batch viscosity, NCO content testing, and storage shelf-life confirmation.

Incoming inspection typically follows sampling standards such as GB/T 2828.1, with clearly defined sampling plans and acceptance criteria for each material type. Non-conforming batches are rejected. The detailed operating procedures are specified in HANKE's "Procurement Control Procedure," with inspection records filed per batch to ensure full traceability.

Step 2: Rough Turning

The metal hub undergoes initial turning to achieve basic external shape and remove excess material. Cutting speed and feed rate must be set according to hub material (steel/iron/aluminum) to avoid machining stress concentration or surface burns. After rough turning, the hub is checked to ensure sufficient material is left for precision turning (typically 0.3-0.5 mm).

Step 3: Precision Turning

Precision turning is the critical step that determines final hub dimensional accuracy. Key requirements include: concentricity ≤0.05 mm (affects running smoothness — exceeding tolerance causes radial runout), surface roughness Ra 3.2-6.3 μm (too smooth hurts bonding, too rough affects precision), and dimensional tolerances.

For concentricity control, a coordinate measuring machine (CMM) is the industry-standard inspection method, achieving measurement accuracy at the 1 μm level. In production, HANKE uses a CHOTEST CMM for batch sampling; out-of-tolerance parts are scrapped immediately — returning them for re-turning would destroy other dimensions already machined to spec.

Step 4: Drilling

Mounting holes are drilled into the hub according to engineering drawings. Position tolerance affects multi-hole alignment consistency, while hole diameter tolerance affects bolt fit tightness. For AGV drive wheels, if the fit clearance between hub and drive shaft exceeds 0.05 mm, micro-vibration can occur under heavy load, potentially leading to bolt loosening over extended operation.

Step 5: Shot Blasting

Shot blasting is the core upstream step that determines tread bond strength. Standards require: shot blasting grade Sa2.5 (near-white metal) and surface roughness Ra 25-50 μm.

Key control parameters include abrasive particle size, blasting angle (typically 70-90°), blasting distance, and blasting duration — all directly affecting surface treatment uniformity and bond quality. After shot blasting, the hub surface must not be touched by hand — oil from skin will contaminate the prepared surface. HANKE's "C-04 Shot Blasting Operating Standard" specifies clear upper and lower limits for all parameters, from abrasive selection to blasting parameters.

Step 6: Cleaning

Eco-friendly degreaser or isopropyl alcohol is used to remove residual abrasive dust and metal debris from the hub surface. The time interval between cleaning and adhesive coating is strictly limited — typically within 2 hours; otherwise, re-blasting is required.

Step 7: Adhesive Coating (Bonding Agent Application)

A specialized polyurethane bonding agent is uniformly applied to the hub's bonding area. Core requirements: uniform coating thickness (too thick creates internal stress, too thin results in insufficient bond strength), precise coverage area, and correct drying temperature and duration.

Coating uniformity directly affects final bond strength. Automated spray equipment has become the industry mainstream, replacing manual brushing. HANKE's bonding management system covers adhesive brand selection, dilution ratio settings, number of coats, and drying parameters. These specifications are standardized in the "C-02 Manual Casting Procedure" and C-04 process documents.

Step 8: Casting

Polyurethane prepolymer and curing agent are mixed at an exact ratio and injected into the mold cavity. Technical requirements: raw material preheating (70-100°C), precise ratio control (deviation beyond ±1% causes hardness non-compliance), dynamic pressure adjustment (ensures uniform filling with no air bubbles), and vacuum degassing.

The casting process demands high metering accuracy and temperature control — ratio deviation must stay within ±1% and material temperature fluctuation within ±1°C. HANKE uses a casting machine for this step, with detailed equipment parameters specified in the "C-04 Casting Machine Procedure." Gel time testing is performed before each batch to confirm raw material reactivity.

Step 9: Curing (Post-Cure / Maturation)

Note — polyurethane "curing" differs from rubber vulcanization. Rubber vulcanization is a sulfur cross-linking reaction, while polyurethane post-cure is a chemical cross-linking process between prepolymer and curing agent. Temperature: 60-120°C, duration: 1 hour to several hours depending on formulation. Under-curing results in poor abrasion resistance; over-curing makes the material brittle.

Step 10: Tread Finishing (Rubber Turning)

After curing, the tread is machined to the final outer diameter and profile specified on the engineering drawing. Polyurethane elastomer has completely different cutting characteristics from metal — cutting too fast causes tread burning or fuzzing, while cutting too slow reduces efficiency.

Experienced bonded wheel manufacturers develop dedicated tooling and cutting parameters specifically for polyurethane materials. Tread dimensional tolerance is controlled within ±0.1 mm. HANKE uses specialized tooling and process parameters for this step, with a cutting approach entirely different from metal machining.

Step 11: Painting

Anti-corrosion treatment is applied to exposed metal surfaces of the hub. Options include painting, phosphating, galvanizing, or Dacromet coating, selected according to the application environment. Requirements: uniform film, no runs, no missed areas.

Step 12: Visual Inspection

Check: tread free of bubbles/cracks/material shortage; bond interface free of delamination (a 0.1 mm feeler gauge should not penetrate the bond line); paint surface free of damage/rust spots; markings complete and legible.

Step 13: Final QC & Warehousing

Final QC inspection per warehousing standards includes: hardness testing (Shore durometer per DIN 53505, tolerance ±3 Shore A), full dimensional inspection, static balance testing, and bond strength sampling. Only products passing all checks are released to inventory.

III. Three Critical Quality Control Points

Among the 13 manufacturing steps, three have the most significant impact on final product quality and are designated as critical quality control points:

QC Point 1: Precision Turning Accuracy

If hub concentricity exceeds 0.05 mm, none of the downstream steps — shot blasting, adhesive coating, or casting — can compensate. The coordinate measuring machine (CMM) is the industry-standard sampling method. HANKE uses a CHOTEST CMM for batch sampling at this stage, with concentricity data recorded on the parameter card as quality evidence. Out-of-tolerance parts are scrapped immediately.

QC Point 2: Shot Blasting Quality

A significant proportion of bonded wheel delamination failures are related to bonding process issues. If shot blasting fails to meet spec or the time interval between blasting and coating is too long, bond strength drops substantially. Daily monitoring procedures should include: abrasive grit size check (per shift), surface roughness test (per batch), and time-interval tracking. HANKE's shot blasting operation covers all three aspects, with records maintained in the "C-04 Shot Blasting Operating Standard" execution log.

QC Point 3: Casting Ratio Control

If the ratio deviation between prepolymer and curing agent exceeds ±1%, hardness drifts by 3-5 Shore A. High-precision metering pumps and online ratio monitoring systems are the established industry solution. HANKE uses high-precision metering pumps with an online ratio monitoring system at this stage, with data incorporated into batch management records.

Critical Process Defect Comparison

IV. Frequently Asked Questions (FAQ)

Q1: Why do some bonded wheels delaminate after just a few months?

The root causes of delamination, in order of impact: overload shock > bonding process defects > environmental aging > material incompatibility. Based on HANKE's after-sales complaint analysis, substandard shot blasting is the leading factor among bonding process defects. In HANKE's 13-step system, the execution standards for shot blasting and adhesive coating — the two upstream steps — are specifically designed to control delamination risk at the source.

Q2: Is polyurethane bonded wheel "curing" the same as rubber vulcanization?

No. Rubber vulcanization involves sulfur cross-linking with rubber molecules, while polyurethane post-cure (sometimes also called "curing" or "maturation" in the industry) is a chemical cross-linking reaction between prepolymer and curing agent. The chemical mechanisms and process parameters are fundamentally different.

Q3: How can I evaluate a bonded wheel supplier's process capability?

Three dimensions: (1) ISO 9001 certification with verifiable process documentation (e.g., Shot Blasting Operating Standards); (2) Inspection equipment such as CMM; (3) Whether the supplier has the in-house capability to perform all 13 steps independently.

Q4: Why do bonded wheels with the same hardness rating vary so much in service life between suppliers?

Hardness is only a surface-level indicator. The core factors include DIN abrasion value, bond strength (≥8 MPa), concentricity accuracy (≤0.05 mm), and completeness of curing. HANKE's Eamflex 93A achieves <40 mm³ in DIN 53516 testing — approximately 20% of the abrasion rate of rubber materials.

Q5: What technical parameters do I need to provide for a custom bonded wheel?

(1) Hub drawing or physical sample; (2) Tread hardness requirement (75A / 85A / 93A, etc.); (3) Working load and operating speed; (4) Application environment conditions. HANKE's engineering team completes formulation fine-tuning and parameter card development within 3-5 working days.

Q6: How do you calculate the total cost of ownership (TCO) for a bonded wheel?

TCO = unit wheel cost + (replacement frequency × replacement cost). High-quality bonded wheels can extend replacement cycles to 12 months (versus 3 months for standard wheels), reducing overall TCO by 50% or more.

Q7: What are the key parameters of the shot blasting process for PU bonded wheels?

Three core parameters: (1) Abrasive selection (steel grit / quartz grit size); (2) Blasting pressure and angle (0.5-0.7 MPa, 70-90°); (3) Adhesive coating must be completed within 2 hours of blasting. HANKE's "C-04 Shot Blasting Operating Standard" specifies clear upper and lower limits for all these parameters.

Q8: What is a parameter card, and how does it relate to bonded wheel quality?

A parameter card is the core tool of the quality management system, used in conjunction with the "D-01 Final QC and Warehousing Standard." It is prepared before each production batch and specifies: prepolymer type, mixing ratio, casting parameters, curing conditions, and inspection criteria. After review and approval, the card governs production execution, enabling full-process traceability.

V. Summary & Recommendations

Each of the 13 steps in PU bonded wheel manufacturing is a critical link in determining final product quality. From the initial incoming inspection to the final warehousing QC, standardized management under the ISO 9001 quality system runs through the entire process.

For equipment procurement professionals evaluating bonded wheel suppliers: beyond price and delivery lead time, the more important considerations are whether the supplier has complete in-house 13-step manufacturing capability — especially whether the three core steps of shot blasting, adhesive coating, and casting are controlled in-house. HANKE designs its process architecture around full in-house control of these three steps. The supplier's process documentation system (work instructions and parameter cards) and inspection equipment (CMM, etc.) are often reliable indicators of product quality consistency — and HANKE's parameter card system and CHOTEST CMM data serve as verifiable evidence.

A reliable polyurethane bonded wheel production system must cover shot blasting (Sa2.5 grade standard), bonding (≥8 MPa strength), casting (±1% ratio accuracy), tread finishing (±0.1 mm tolerance), and inspection (1 μm-level CMM testing) — with standardized work instructions and inspection specifications for every process step. HANKE's 13-step system embodies this standard through the ISO 9001-certified "C-series" and "D-series" process documents and the Eamflex 93A / Saxflex 75A compound systems that have been validated in field applications across automotive, logistics, and industrial equipment sectors.
