1. Why AGV Wheel Slippage Is a System-Level Problem

1.1 The Cascading Effects of Slippage

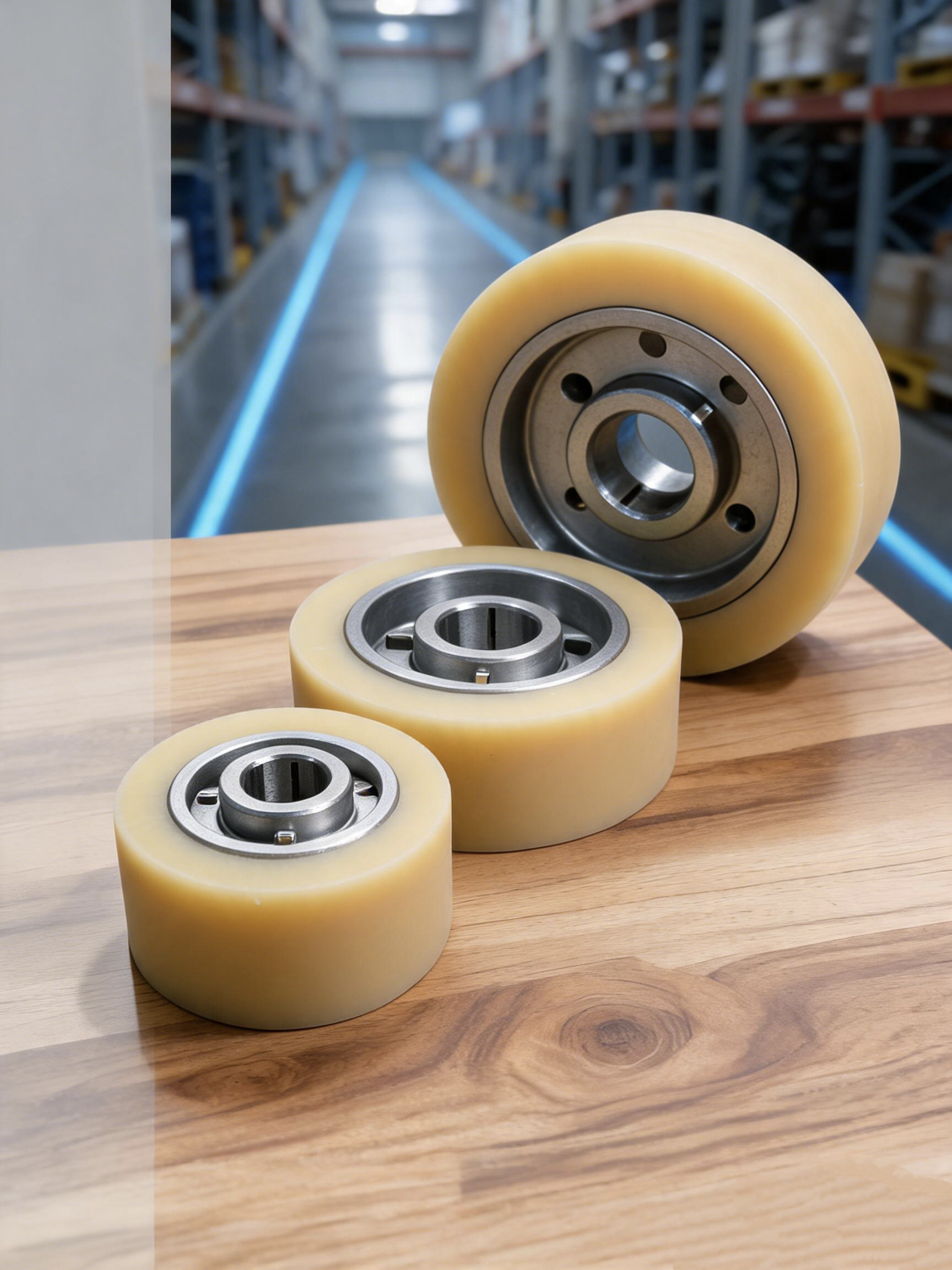

As AGVs (Automated Guided Vehicles) are rapidly deployed across smart warehouses, automotive assembly lines, semiconductor cleanrooms, and healthcare logistics, wheel slippage has emerged as a core failure mode affecting OEE (Overall Equipment Effectiveness). An AGV wheel system typically consists of three types: drive wheels, driven wheels, and guide wheels. Slippage in any category can cascade—drive wheel slippage causes traction loss and positioning errors, driven wheel slippage results in vehicle sway and floor scoring, and guide wheel slippage leads to path deviation. What appears as a simple surface phenomenon is in fact a coupled failure involving materials science, mechanical design, installation craftsmanship, and environmental adaptability.

Once slippage occurs, a chain reaction follows: positioning accuracy is lost (AGV deviates from planned path, laser/magnetic navigation systems report errors) → abnormal tread wear accelerates (localized frictional heat build-up, polyurethane softening or carbonization) → floor damage (epoxy flooring scratched, with per-square-meter repair costs reaching hundreds of RMB) → throughput reduction (safety circuits trigger speed reduction, per-AGV capacity drops). The entire production line material-flow tempo is disrupted, with losses far exceeding the cost of the wheels themselves.

HANKE technical team, through servicing multiple automotive OEM AGV assembly line projects, has observed clear seasonal fluctuation patterns in slippage failures: wet-condition slippage rates during southern China's rainy season are approximately 40% higher than in the dry season, and low-temperature hardening in northern China's winter-spring transition produces notably elevated start-up slippage. This highlights that slippage is not merely a design issue but a combined challenge of environmental adaptation and maintenance strategy.

1.2 Three Types of Slippage

Slippage is not a single failure mode but a family of failures. Based on triggering conditions and manifestation, AGV wheel slippage can be classified into three types:

2. Five Root Causes: A Systematic Analysis

2.1 Material: The Decisive Role of Polyurethane Friction Coefficient

The friction coefficient between polyurethane elastomer and the floor surface is the first-principles factor in drive wheel slippage, while driven and guide wheel slippage is more closely tied to bearing rotational smoothness. Unlike rubber and nylon, polyurethane's friction behavior is nonlinear—it is influenced by a combination of hardness, temperature, humidity, and surface roughness.

From a materials science perspective, the polyurethane–steel friction coefficient consists of two components: adhesion friction (van der Waals forces and hydrogen bonding between PU molecular chains and the counter-surface) and hysteresis friction (energy dissipation as PU elastomer deforms over surface asperities). Both components are directly hardness-dependent. As tread hardness increases, hysteresis friction decreases but adhesion friction increases; as hardness decreases, the pattern reverses.

Taking HANKE Eamflex 93A as an example, through prepolymer formulation optimization and casting process parameter adjustment, its dynamic friction coefficient (ASTM D1894, dry steel) is stabilized in the 0.65–0.75 range. This is achieved by tuning the hard-segment/soft-segment ratio—a higher proportion of hard segments (diisocyanate + short-chain extender) provides strength, while soft segments (polyester/polyether polyol) with lower glass transition temperatures impart elasticity and adhesion. This balance enables Eamflex to deliver both adequate traction (sufficiently high friction coefficient) and excellent wear life in AGV drive wheel applications (DIN abrasion <40 mm³).

For comparison, standard polyurethane formulations (without friction optimization) exhibit a dry friction coefficient of only 0.45–0.55, further degrading to 0.30–0.40 under wet conditions. This means that an identical AGV, when switching from a standard to a friction-optimized drive wheel formulation, can realize a 30% or greater safety margin improvement against start-up slippage.

2.2 Hardness Matching: "Harder = More Slip-Resistant" Is a Common Misconception—and "One Formula for All Wheels" Is Another

A widespread misconception is that "higher hardness means better wear resistance and anti-slip performance," and that "drive wheels and driven wheels can use the same compound." The reality: drive wheels require a high friction coefficient to transmit traction, with a recommended hardness of 93 ±3 Shore A; for driven and guide wheels, the core metrics are rotational smoothness and low noise rather than high friction—an excessively soft tread causes excessive rolling resistance, while an overly hard tread produces bouncing and lateral sliding on uneven floors.

HANKE's two tread systems are designed based on differentiated wheel-class matching—a strategy that emerged from HANKE's technical team analyzing slippage patterns across more than 100 AGV projects: the Eamflex system (93 ±3 Shore A) is purpose-built for AGV drive wheels, balancing wear resistance with traction; the Saxflex system (75 ±3 Shore A) serves driven and guide wheels, achieving smooth rolling, low noise, and floor protection through lower hardness and higher elasticity. On the same AGV, the tread hardness of drive wheels and driven wheels typically differs by 15–20 Shore A—a system-level matching strategy validated through extensive project experience.

Industry test data indicates: for drive wheels, every 5 Shore A increase in tread hardness results in an approximately 8–12% decrease in friction coefficient (dry steel); for driven wheels, every 5 Shore A decrease in tread hardness results in an approximately 15–20% increase in rolling resistance, which in turn accelerates bearing wear and rotational resistance, indirectly causing vehicle sway. Therefore, "differentiated hardness matching by wheel function" rather than "maximizing hardness uniformly" is the correct approach to anti-slip design.

2.3 Bonding Failure: The "Invisible Killer" Between Tread and Hub

In slippage diagnosis, the most easily overlooked factor is the bonding interface between the polyurethane tread and the metal wheel hub. When the bonding layer partially delaminates, the drive wheel's rotational torque cannot be fully transmitted to the tread–ground contact surface—part of the energy dissipates within the bonded layer, manifesting as micro-slip where "the hub turns but the tread slips." For driven wheels, although no drive torque is transmitted, bonding failure causes relative sliding between tread and hub, leading to uneven wear and noise.

Bonding failure progresses through three stages: (1) Micro-delamination—fine signals appear at the bonding layer edge (detectable via ultrasonic inspection, not visible externally), affecting friction by approximately 5–10%; (2) Delamination propagation—the peeled area exceeds 15% of the bonding surface, localized tread bulging appears, and the drive wheel emits abnormal noise during heavy-load cornering; (3) Large-scale debonding—tread separates from hub, the hub directly contacts the floor, and the AGV drive wheel completely loses function.

In HANKE's 13-step manufacturing process, bonding quality is ensured by three critical steps: Sandblasting (Sa2.5-grade rust removal, surface roughness Ra 25–50 μm, removing the oxide layer and increasing bonding area) → Adhesive Spraying (chemical adhesive layer, film thickness uniformly controlled at 0.05–0.10 mm) → Pouring (using a dynamically pressure-regulated casting machine, C-01 prepolymer system reacts and cures inside the mold, ensuring no bubbles or delamination between the bonded layer and the hub). Each process step corresponds to a work instruction (WI document) and a quality inspection record (F-form). The factory acceptance criterion for bond strength is ≥8 MPa.

2.4 Installation Precision: The Critical Impact of Concentricity and Torque

The impact of installation errors on slippage is often underestimated. On the drive wheel side—servo motor → gearbox → drive wheel in series—any deviation in installation precision is amplified at the wheel–ground contact interface. On the driven wheel side—bearing clearance and lateral play directly determine rotational smoothness and vehicle stability. AGV wheel system installation is an integrated engineering task; precision loss on either side cascades to the opposite side.

Concentricity error is the most typical installation problem. When the drive wheel rotational axis deviates from the gearbox output shaft axis by more than 0.05 mm, the drive wheel experiences radial runout once per revolution—the tread–ground contact pressure fluctuates periodically, with excessive pressure at the peaks and insufficient adhesion at the troughs, producing intermittent "hop-and-slip" slippage. If the deviation exceeds 0.10 mm, not only does slippage frequency rise sharply, but gearbox bearing wear also accelerates. For driven and guide wheels, bearing clearance that exceeds specification causes similar cyclic fluctuations in rotational resistance.

Insufficient bolt torque is equally critical. For M16 wheel hub fastening bolts, the design torque is typically 210 N·m. If actual torque is 20% low (approximately 168 N·m), micron-scale relative slip occurs between the hub and drive shaft under rapid acceleration/deceleration—this micro-slip ultimately transmits through the bonding layer to the tread, manifesting as "jerky acceleration," and over time leads to keyway wear and bonding layer fatigue.

2.5 Environmental Factors: The Three-Way Interaction of Temperature, Humidity, and Contamination

Environmental degradation is the most time-sensitive trigger for slippage. Three environmental factors operate through distinct mechanisms:

Temperature: The storage modulus of polyurethane elastomer decreases with rising temperature. When tread temperature exceeds 40°C, the load capacity of the Eamflex system begins to decline (approximately 5–8% per 10°C increase). More critically, the friction coefficient also drops at elevated temperatures—enhanced thermal motion of PU molecular chains reduces the adhesion friction component. At low temperatures (<5°C), polyurethane tends toward the glassy state, surface hardness rises sharply, and the friction coefficient similarly drops. For driven wheels in cold environments, bearing grease viscosity also increases, compounding rotational resistance.

Humidity: A water film is a natural lubricant at the polyurethane–steel/epoxy interface. The wet-condition friction coefficient degrades 20–30% versus dry conditions. For AGVs operating in underground parking, cold-chain logistics, and food processing plants, wet-condition slippage is a core pain point. HANKE's Saxflex 75A formulation, by increasing the polyester polyol ratio and incorporating functional additives, limits wet-condition friction coefficient degradation to within 20%.

Contamination: Dust (particularly carbon powder and metal particles) forms a rolling particle layer between tread and floor, degrading surface contact to point contact; oil contamination directly reduces the adhesion friction component. Field data from AGVs in stamping shops and machining workshops indicates that floors left uncleaned for one week can cause a 15–25% drop in drive wheel friction coefficient.

3. Four Diagnostic Methods: Rapidly Locating Slippage Root Causes for Drive, Driven, and Guide Wheels

3.1 Tread Hardness Testing

Use a Shore A durometer (compliant with DIN 53505) at three equidistant circumferential positions on the tread, taking five readings per position and averaging. If the measured value deviates by more than ±5 Shore A from the design specification and the wheel has served less than 30% of its design life, suspect material formulation or curing/post-curing process anomalies. For driven and guide wheels, also check bearing rotational smoothness by hand—excessive resistance may indicate bearing failure rather than tread hardness issues.

3.2 Quick Friction Coefficient Assessment

In field conditions where a laboratory friction tester is unavailable, a portable friction coefficient tester or simple inclined-plane method can be used: place the AGV wheel on a steel plate at a known inclination angle (dry, clean surface), measure the critical angle θ at which the wheel transitions from static to sliding, then the static friction coefficient μ = tan(θ). This method has an accuracy of ±0.05. By comparing the critical angle difference between new and used wheels, the degree of friction performance degradation can be determined.

3.3 Tread Surface Temperature Monitoring

Using an infrared thermal camera or spot thermometer, measure the tread surface temperature after the AGV has run continuously for 30 minutes. Under normal operating conditions, the tread temperature rise for Eamflex 93A drive wheels at rated load (4 km/h) should stay within 10–15°C. If the measured rise exceeds 25°C, this indicates abnormal rolling resistance—possible causes include excessively low tread hardness, partial bonding layer failure, or insufficient bearing lubrication. Sustained high temperatures (>70°C) will accelerate polyurethane aging, causing a precipitous drop in friction coefficient. For driven and guide wheels, temperature asymmetry between left and right wheels is a key indicator of bearing or alignment issues.

3.4 Wheel Diameter Comparison

Comparing the diameter difference between the left and right drive wheels (or between a drive wheel and its paired driven wheel) is an effective diagnostic tool for persistent slippage. Using a vernier caliper or coordinate measuring machine, measure the left and right wheel diameters on the same AGV: if the diameter difference exceeds 0.3 mm, the smaller-diameter side is actually more prone to slippage due to higher contact stress (counterintuitively—it is not the larger wheel that slips first, but the smaller one, because stress concentration breaks through the adhesion limit earlier). In HANKE's factory QC, the outer diameter tolerance for wheels of the same batch is controlled within ±0.1 mm, a capability enabled by the CHOTEST coordinate measuring machine with 1μm-level measurement accuracy.

4. System-Level Solutions: A Full-Lifecycle Anti-Slip Strategy from Selection to Maintenance

4.1 Material Selection: Matching Tread Systems by Wheel Function and Operating Conditions

4.2 Installation Standards: Three Steps to Ensure Precision

Step 1 — Clean the hub mounting surface: Wipe the drive shaft shoulder and wheel hub bore inner wall with a lint-free cloth moistened with isopropyl alcohol, ensuring no oil residue or metal shavings. Residual anti-rust oil on threads reduces the actual friction coefficient of the threaded pair, causing the torque wrench reading to reach specification while actual preload force remains insufficient.

Step 2 — Cross-pattern staged tightening: Use a cross-diagonal pattern with three tightening stages. First stage—pre-tighten to 40% of target torque (e.g., 84 N·m for M16 bolts); second stage—tighten to 80%; third stage—tighten to 100% and mark with a paint pen. Never tighten to full torque in a single pass—this causes uneven bolt preload, compounding concentricity deviation.

Step 3 — Concentricity verification: After installation, measure radial runout on the drive wheel outer diameter using a dial indicator. Rotate the wheel one full revolution; runout ≤0.05 mm is acceptable. For driven and guide wheels, also verify bearing rotational smoothness and lateral play. If runout exceeds specifications, loosen bolts and re-install using the staged cross-pattern method. If still out of spec, check whether the gearbox output shaft is bent or bearings are worn.

4.3 Maintenance Strategy: Recommended Preventive Maintenance Intervals

5. Anti-Slip Performance Comparison: Three Mainstream Wheel Materials

6. Frequently Asked Questions (FAQ)

Q1: How do I distinguish drive wheel slippage from driven wheel failure when my AGV has abnormal noise and body sway on start-up?

Start-up noise + wheel spin = drive wheel slippage (motor torque exceeds wheel-ground adhesion). Body sway + no wheel spin = uneven rotational resistance in driven/guide wheels (check bearing clearance and tread roundness). Diagnostic sequence: (1) first identify the symptom type; (2) for drive wheel issues, focus on tread hardness and friction coefficient; (3) for driven wheel issues, focus on bearing rotational smoothness and wheel diameter consistency. HANKE's technical team, on a Mercedes-Benz assembly line project, reduced total wheel system slippage from a monthly average of 15 incidents to zero by switching drive wheels to Eamflex high-friction compound and matching driven wheels with Saxflex low-rolling-resistance compound.

Q2: My newly replaced drive wheels started slipping within two months. Is this a quality issue?

Not necessarily. New-wheel slippage must be distinguished as wear-induced or contamination-induced. Wear-induced—test with a durometer; if hardness is still within the design range, material wear is ruled out. Check whether new contamination sources (e.g., newly added cutting fluid splash zones) have appeared on the floor in the past two months. Contamination-induced—if the tread surface still exhibits a matte finish (rather than a glossy mirror-like sheen), wear is normal; in this case, the root cause is most likely floor cleanliness or installation torque relaxation. We recommend torque re-checks every three months.

Q3: The left and right drive wheels are wearing at different rates, and one side starts slipping first. What should I do?

This is a classic signal of installation concentricity error or wheel diameter mismatch. First, measure the wheel diameter difference using a CMM—HANKE's factory wheel diameter tolerance is within ±0.1 mm. If the measured diameter difference exceeds 0.3 mm, uneven wear has already occurred. Then check the drive unit installation precision, focusing on radial runout. If concentricity is also within spec, finally check whether the AGV weight distribution is symmetrical—a left-right load deviation exceeding 15% can cause asymmetric wear.

Q4: What special considerations apply for AGV wheel systems operating in cold storage (-18°C)?

The entire wheel system requires special treatment. At low temperatures, polyurethane tends toward the glassy state—drive wheel friction coefficient drops, and driven wheel hardening combined with increased bearing grease viscosity causes a sharp rise in rotational resistance. Solution: (1) drive wheels—use cold-resistant Eamflex formulation (glass transition temperature < -30°C); (2) driven/guide wheels—use low-temperature Saxflex formulation + low-temperature bearing grease; (3) cold storage condensation water creates wet conditions, so drive wheel tread must also have wet-condition anti-slip capability. Contact the HANKE technical team for a cold-chain-specific full-wheel-system solution.

Q5: Can I install anti-slip chains or spray anti-slip coating on drive wheels?

Not recommended. Chains and coatings are "compensatory" measures that address symptoms rather than root causes and introduce new problems: anti-slip chains severely damage epoxy flooring (repair costs far exceed the wheel cost); anti-slip coating adhesion on polyurethane elastomer surfaces is unstable, beginning to peel after 200–500 hours of use, with debris potentially entering AGV sensor detection zones. The correct approach is to address the problem at two fundamental levels—material formulation (tread friction coefficient design) and installation standards—rather than layering on patches.

Q6: Can drive wheels and driven wheels on the same AGV use the same compound?

Not recommended. The core requirement for drive wheels is high friction coefficient + high wear resistance (Eamflex 93A), while the core requirement for driven wheels is low rolling resistance + rotational smoothness + low noise (Saxflex 75A). If a uniform 93A compound is used, driven wheels will be too hard, causing bouncing and lateral sliding on uneven floors. If a uniform 75A compound is used, drive wheels will be too soft, resulting in high rolling resistance, tread heat build-up, and accelerated wear. Differentiating tread hardness between drive wheels and driven wheels on the same AGV is a system-level design principle validated through extensive project experience.

Q7: How can I tell whether slippage is caused by tread wear versus bonding layer failure?

The simplest differentiation method: with the drive wheel unloaded, push and rotate the wheel body by hand. If the hub rotates but the tread does not—this is a clear sign of bonding layer separation and the wheel must be replaced immediately. If the hub and tread rotate together synchronously but the wheel still slips when reinstalled on the AGV, then check: (1) tread surface condition (excessive wear or contamination?); (2) hardness (has aging caused significant deviation from the design value?); (3) friction coefficient (use the inclined-plane method described in Section 3.2). In most cases, synchronous rotation + slippage points to material or environmental issues.

Q8: Is there a quantitative method for assessing slippage risk?

Yes. We recommend the "Safety Factor Method": Safety Factor K = (maximum wheel-ground static friction force) / (wheel-circumferential traction force calculated from motor starting torque). K ≥ 1.3 = safe zone; 1.1 ≤ K < 1.3 = caution zone (increase maintenance frequency recommended); K < 1.1 = high-risk zone (root cause investigation and corrective action required). Static friction force can be calculated from the static friction coefficient obtained via the inclined-plane method (Section 3.2) multiplied by the wheel load; motor starting torque can be read from the drive parameters.

7. Summary and Recommendations

AGV wheel slippage is not an isolated failure point but a four-dimensional coupled problem involving materials, design, installation, and maintenance—with the root cause systems for drive wheels and driven/guide wheels differing significantly. The correct path to solving slippage is: first diagnose (use the four methods in this article to pinpoint the root cause and distinguish wheel type), then match (drive wheels → Eamflex system; driven/guide wheels → Saxflex system), and finally standardize (installation precision control + preventive maintenance intervals).

As AGVs are rapidly deployed across automotive, logistics, semiconductor, healthcare, and other industries, the AGV wheel system has evolved from a "collection of consumables" to a "cluster of system-critical components." A wheel supplier that invests R&D in material formulations, adheres to full-process quality control in manufacturing, and executes standardized installation and service protocols is a long-term reliable partner for AGV system integrators and end users alike.
