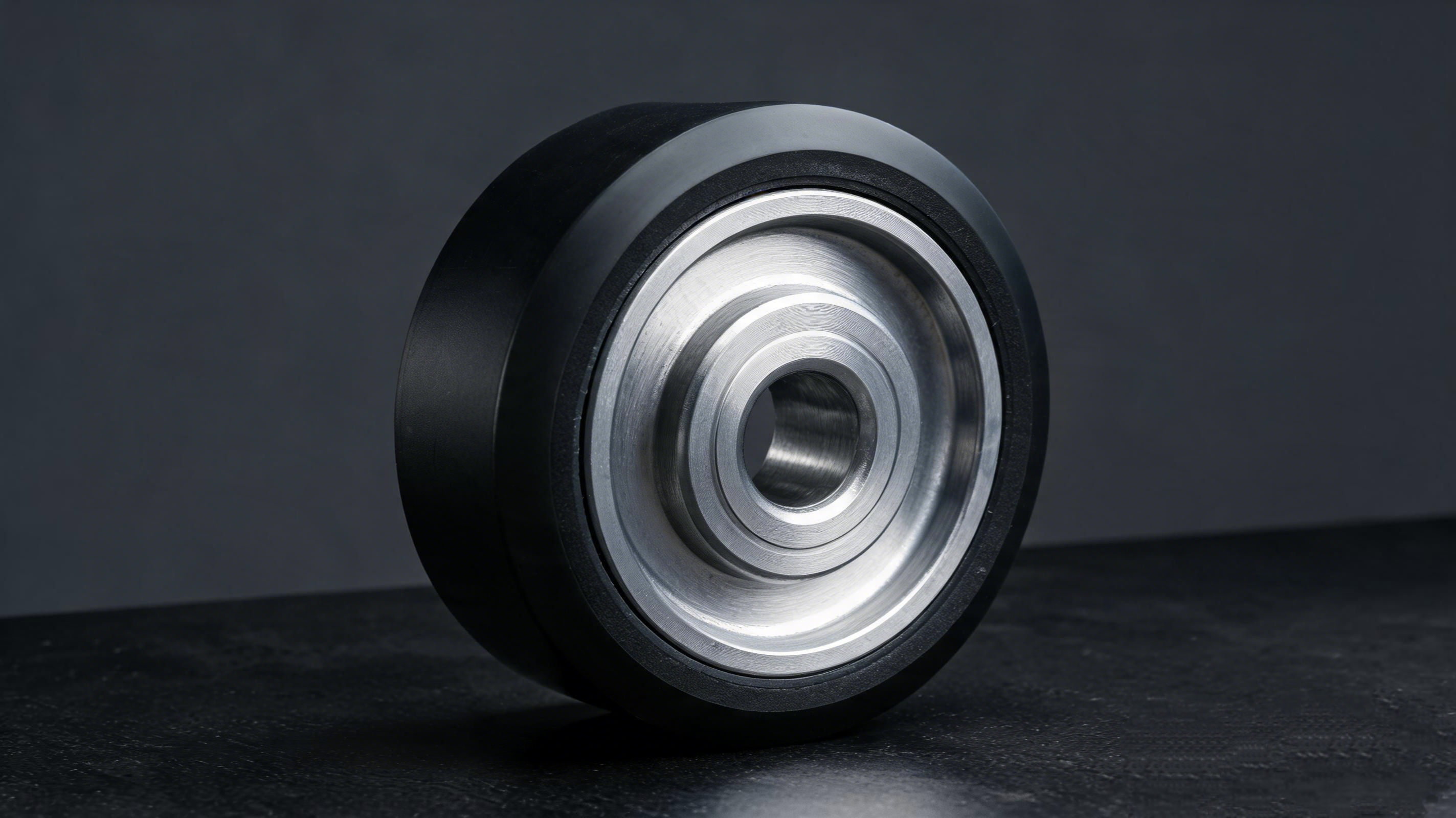

PU Bonded Wheel Bond Strength: Why Delamination Is a Common Industry Challenge

► Approximately 38% of delamination defects in polyurethane bonded wheels are directly linked to bonding process quality — sandblasting below Sa2.5 grade and exceeding the sandblast-to-adhesive time window are the two leading causes.

► Bond strength results from the synergy of chemical bonding (isocyanate-hydroxyl reactions at the metal interface) and mechanical interlocking (surface roughness Ra 25-50 μm). Industry standard requires ≥8 MPa per GB/T 528; however, in environments with humidity >70% RH and temperatures below 15°C, peel strength can drop by 30-40%.

► Bonding strategies vary significantly by hub material: aluminum alloy requires a specialized coupling agent due to its dense oxide layer — even with proper sandblasting, its bond strength is ~20% lower than steel hubs without surface treatment.

► Bond quality can be quantified through 7 technical indicators: bond strength (MPa), peel force (N/mm), feeler gauge detection (mm), cross-section analysis, salt spray test, thermal cycling (50 cycles), and fatigue life (cycles).

Key Data at a Glance

1. Delamination: The Most Troublesome Technical Challenge for PU Bonded Wheels

Among all aftermarket failures of polyurethane bonded wheels, "delamination" is the most difficult to resolve on-site. Noise can be located by listening, wear can be measured by tread thickness — but delamination, the separation of the polyurethane layer from the metal hub, means the wheel is scrap, often without warning.

Three Types of Delamination

Delamination is not a single failure mode. It can be classified into three types based on the interface location and timing:

1. Interface delamination (most common) — Occurs at the bonding interface between the polyurethane elastomer and the metal hub. The tread peels from the hub edge and spreads inward. Root causes are typically related to bonding process quality: insufficient sandblasting, uneven adhesive application, or inadequate curing conditions.

2. Cohesive failure (less common but more severe) — Failure occurs within the polyurethane elastomer layer itself, not at the bond interface. Residual polyurethane remains on the hub surface after peeling. This indicates insufficient material strength — wrong hardness selection, incompatible formulation, or under-curing — rather than a bonding process issue.

3. Impact overload delamination (sudden failure) — The wheel experiences instantaneous impact under extreme load (AGV emergency stop, obstacle collision, curb impact). Shear stress exceeds the instantaneous load-bearing limit of the bond interface, causing tread-hub separation.

Among these three types, interface delamination is the most common and the most controllable in production. Understanding its mechanism requires examining the fundamental science of bonding.

HANKE's PFMEA (Process Failure Mode and Effects Analysis) systematically evaluates 47 potential failure modes across all 13 manufacturing steps. A significant proportion of delamination defects are traced back to the sandblasting and adhesive application processes — the core root causes of bonding-related failures.

2. The Science of Bond Strength

Why does polyurethane elastomer "stick" to metal? Two forces work in synergy:

2.1 Chemical Bonding

When the adhesive (typically a polyurethane-based primer) is applied to the metal hub surface, active functional groups — primarily isocyanate (-NCO) groups — react chemically with hydroxyl (-OH) groups on the metal surface, forming chemical bonds. This is the "backbone" of adhesive strength. If the hub surface is contaminated with oil, oxide layers, or rust, this chemical reaction cannot occur.

This is precisely why sandblasting must achieve Sa2.5 grade. Near-white blast cleaning removes all visible oil, rust, oxide layers, and old coatings, exposing the bare metal surface so that active groups can form effective bonds.

2.2 Mechanical Interlocking

Sandblasting does more than clean — it creates a microscopically textured surface (roughness Ra 25-50 μm). During the casting stage, liquid polyurethane flows into these microscopic cavities and solidifies, forming "anchor points" — like thousands of miniature rivets locking the polyurethane to the metal surface.

The strength of mechanical interlocking depends on the depth and uniformity of the surface roughness. When Ra is below 15 μm, the anchor points are too shallow for adequate locking. When Ra exceeds 70 μm, although the anchor points are deeper, the excessive roughness creates shadowed areas where adhesive cannot reach the bottom of cavities, forming voids that compromise overall bond integrity.

2.3 Synergy Between the Two Forces

Chemical bonding and mechanical interlocking require a balance between smoothness and roughness:

• Too smooth (Ra < 10 μm): Large chemical bonding area, but without mechanical interlock points the tread can slide under shear stress.

• Too rough (Ra > 70 μm): Mechanical interlocking is effective, but effective area for chemical bonding decreases, and trapped air at cavity bottoms reduces interface integrity.

Industry practice identifies Ra 25-50 μm as the optimal range — within this window, both chemical bonding and mechanical interlocking achieve ideal synergy. HANKE incorporates Ra 25-50 μm as a rigid requirement in its sandblasting standards, with abrasive particle size and spray angle parameters specified in its C-04 Sandblasting Work Instruction to ensure consistent surface conditions batch after batch.

3. Why Is Delamination So Common? — Six Root Causes in Depth

Delamination is not simply a process issue — it is the result of multiple interacting variables. The following are ordered by frequency of occurrence:

Root Cause 1: Sandblasting Quality Variation (Most Common)

Causes of sandblasting variation include: abrasive depletion without timely replenishment, spray angle drift from set values, and operator fatigue causing uneven blast time. These issues are fully controllable through standardized daily monitoring — per-shift abrasive particle size checks, per-batch surface roughness sampling, and periodic blasting grade comparison tests.

Root Cause 2: Sandblast-to-Adhesive Time Interval Exceeded

Freshly blasted metal hubs are in an "activated" state — the bare metal begins to oxidize in air, with visible discoloration forming within 24 hours. Industry rule: adhesive must be applied within 2 hours of sandblasting; exceeding 4 hours requires re-blasting.

This requirement is often overlooked in practice — especially during peak order seasons when hubs blasted one day are left until the next day for adhesive application. The surface appears unchanged, but a microscopic oxide layer has already formed, potentially reducing bond strength from the standard 8 MPa to 5-6 MPa.

Root Cause 3: Adhesive Selection and Application Mismatch by Hub Material

Root Cause 4: Insufficient Curing Conditions

The adhesive curing process — a chemical reaction — has specific temperature, humidity, and time requirements. Ambient temperature below 15°C significantly reduces reaction activity, resulting in incomplete curing. Relative humidity above 70% causes moisture in the air to compete with isocyanate groups (competitive reaction), consuming active components intended for metal surface bonding.

Northern winters and southern rainy seasons are high-risk periods for delamination — this is not superstition but a direct effect of humidity and temperature on the curing reaction. Countermeasures include: constant-temperature, constant-humidity workshop control, extended curing time, or appropriately increased curing temperature.

Root Cause 5: Overload Conditions Beyond Design Limits

Some delamination problems originate not in the factory but in the application. AGV emergency deceleration, steep-slope climbing, and continuous forward-reverse cycling of floor scrubbers all impose shear stresses far higher than normal operating conditions.

Using an AGV drive wheel as an example: during normal level-ground travel, shear stress at the bond interface typically fluctuates within 20-40% of the design value. But during emergency stops (braking deceleration of 0.5g) or buffer impacts, instantaneous shear stress can reach 2-3 times the design value. If the polyurethane tread itself has excessively high elastic modulus (too hard), stress concentrates at the bond interface without being released through elastic deformation, sharply increasing delamination risk.

This is precisely the logic behind HANKE's dual-tread system: Eamflex 93A for high-load, high-wear applications and Saxflex 75A for applications requiring frequent starts/stops, reversals, or impact loads — where a softer tread with matched bonding may actually be more reliable.

Root Cause 6: Hub Structural Design Flaws

Less frequently discussed but objectively present: hub edge chamfer design and the ratio of tread thickness to hub diameter both influence stress distribution at the bond interface.

4. Bond Quality Testing: 7 Technical Indicators for Quantitative Assessment

Knowing "delamination occurred" is only a diagnosis. Preventive quality control requires a quantitative evaluation system across seven dimensions:

4.1 Bond Strength Test (Core Indicator)

Per GB/T 528 (ISO 37), bond strength is measured by the tensile method. The finished wheel is cut into standard test specimens and pulled at constant speed on a tensile testing machine. The maximum force at tread-hub separation is recorded and converted to strength (MPa). Industry standard: ≥8 MPa acceptable, ≥10 MPa excellent.

4.2 Peel Test

The 180° peel test measures the force required to peel the tread from the hub edge (N/mm). This directly corresponds to the wheel's resistance to delamination under lateral force or edge impact. Reference value: ≥5 N/mm.

4.3 Feeler Gauge Inspection

The most routine rapid check in finished product inspection — insert a 0.1 mm feeler gauge along the bond interface. If it penetrates more than 5 mm, micro-delamination or voids are present at that location, requiring further verification by sampling.

4.4 Cross-Section Macro Analysis

Cut the wheel radially (destructive test) and examine the bond interface cross-section: smooth interface → insufficient bonding, chemical bonding failure; rough interface with PU residue → cohesive failure, material strength is the weak link; uniform interface distribution → good bonding quality.

4.5 Salt Spray Test

Simulating a corrosive environment: expose the wheel to 240 hours in a salt spray chamber and check for blistering or rust-induced peeling at the bond interface. This is especially critical for wheels used in port machinery or chemical environments.

4.6 Thermal Cycling Test

Cycle the wheel between -40°C and +80°C 50 times (simulating temperature shock from extreme cold storage to high-temperature washing zones) and measure bond strength decay. Decay <15% is considered passing.

4.7 Fatigue Life Test

Run the wheel on a test bench simulating actual operating conditions until bond failure, recording total operating hours or distance. This is the method closest to real-world application — but also the most time-consuming and costly.

5. From Process Control to Quality Closure: Three Lines of Defense for Bond Reliability

5.1 First Line of Defense: Incoming Material Control

The first checkpoint for bond quality is not in the bonding workshop — it is at the incoming inspection stage. Three items must be verified:

• Prepolymer batch viscosity and NCO content: Different batches from the same supplier may have varying reactivity, directly affecting compatibility with the adhesive.

• Adhesive shelf life and storage conditions: Adhesive stored for one week in a warehouse exceeding 25°C shows a marked drop in activity.

• Hub material confirmation: Particularly for aluminum and stainless steel hubs — verify whether primer treatment has been applied.

HANKE records all three items individually at incoming inspection. Adhesive batches are mapped one-to-one with hub batches, with all data archived in the batch traceability file.

5.2 Second Line of Defense: Process Parameter Control

HANKE's multi-step work instructions cover specific set points for all parameters above, with per-batch records fully traceable. During formulation quick-tuning cycles (3-5 working days), bonding parameter adjustments are validated in parallel.

5.3 Third Line of Defense: Finished Product Verification

Even when every in-process parameter is within spec, final products still require bond strength sampling testing before release. The logic: process parameters document "how it was made"; finished product sampling verifies "what the result is." When the two match → process is in control, quality is reliable. When they diverge → unidentified variables exist (operator variation, environmental fluctuation, etc.) requiring investigation.

HANKE performs bond strength sampling according to the D-01 Finished Product Inspection Standard, with all test data archived per batch. In parallel with CMM dimensional inspection, bond performance is recorded as a separate check item on the parameter card.

6. Matching Bonding Strategies to Application Scenarios

A common misconception: higher bond strength is always better. In practice, the optimal bonding strategy depends on the application scenario:

Frequently Asked Questions (FAQ)

Q1: Can a delaminated PU bonded wheel be repaired?

No. Once a PU bonded wheel delaminates, the cost of repair is close to or higher than manufacturing a new one. The delaminated hub must be re-blasted (removing old adhesive and oxide layer) and go through the full adhesive-casting-curing-inspection cycle. Total cost and lead time are comparable to a new wheel. Furthermore, repaired wheels typically have 10-15% lower bond strength than new ones (the hub's surface condition changes after one casting thermal cycle). Replacement is recommended.

Q2: How can I tell if a wheel is about to delaminate?

Delamination is usually a gradual process, not a sudden event. Early warning signs include: (1) regular slight noise during operation, especially under load during turns; (2) visible micro-gaps at the tread edge (detectable with a 0.1 mm feeler gauge); (3) powdery residue or "blooming" at the hub-tread junction. Monthly feeler gauge inspection of critical equipment wheels is recommended — schedule replacement when gap depth exceeds 5 mm.

Q3: Does bond strength decrease at high temperatures?

Yes. The upper temperature limit for polyurethane elastomers is typically 80-100°C (short-term peaks up to 120°C). However, the bond interface typically has a lower temperature tolerance than the elastomer itself. In sustained environments above 80°C, bond strength may decrease by 20-30%. For high-temperature applications (drying lines, furnace conveyors), high-temperature polyurethane systems with matching high-temperature adhesives are recommended, with lower service temperature expectations built into the design.

Q4: What is the difference between Sa2.5 and Sa3.0 blasting grades?

Sa2.5 (near-white) requires removal of all visible oil, rust, oxide layers, and old coatings, allowing only very slight shadows or stain residue. Sa3.0 (white metal) requires complete cleaning with a uniform metallic surface. For PU bonded wheels, Sa2.5 already satisfies the ≥8 MPa bond strength requirement. Sa3.0 provides a marginal improvement (approximately 5-10%) at 30%+ higher blasting cost and time — Sa3.0 is typically unnecessary.

Q5: Why does the same wheel perform well on Machine A but delaminate on Machine B?

The most common reason is duty cycle variation: Machine B has a different acceleration curve, start/stop frequency, or load profile. For example, the same driven wheel on an AGV trailer has a much lower delamination probability than one on the drive position — because the drive position experiences significantly higher shear stress. Another factor is installation precision: misalignment exceeding 0.2 mm coaxiality causes alternating stress on the bond interface with every rotation, accelerating delamination.

Q6: What is the typical service life of a PU bonded wheel?

This depends heavily on operating conditions, but a general reference: under normal conditions (ambient temperature, constant load, non-aggressive environment), tread wear typically reaches end-of-life before bond strength degradation — meaning the bond interface is still intact when the polyurethane tread is worn to replacement limits. In HANKE's field data for Eamflex 93A tread on AGV applications, bond strength remains above 85% of initial value when tread wear reaches replacement threshold. If delamination occurs before tread life is exhausted, the bonding process or material selection needs review.

Q7: What are the storage and shelf life requirements for adhesives?

Polyurethane adhesives are typically two-component systems with a pot life after mixing (usually 30-120 minutes depending on formulation). Unmixed single-component storage life is generally 6-12 months at 5-25°C, away from light and in sealed containers. Check for gelation, separation, or skinning before each use. Production workshops should maintain an adhesive batch management log recording receipt date, opening date, and expiry date — HANKE's incoming inspection standard includes this as a check item.

Q8: Do bond strength test results show seasonal variation?

Yes. At suppliers without controlled curing workshop temperature and humidity, bond strength data can vary significantly between winter and rainy season. Low winter temperature reduces adhesive reaction activity; high rainy-season humidity causes moisture to compete with -NCO groups. Both reduce bond strength. Seasonal variation is typically 10-20%. The countermeasure is temperature and humidity control in the curing workshop. HANKE sets control ranges for both temperature and humidity in its curing process, with parameters recorded per batch in the archive.
