75 Shore A
Very good
Very good
Very good
Tread: Chemically reacted, high-quality polyurethane elastomer with a hardness of 75 ± 3 Shore A provides excellent floor protection, quiet operation, low rolling resistance, high cut and tear resistance, non-marking and non-staining properties, and excellent adhesion to the wheel core.
Wheel Core: Available in 45# steel, cast iron, die-cast aluminum alloy, stainless steel, and other metal materials depending on the operating conditions. Surface treatment options include painting, phosphating, galvanizing, and Dacromet.
Other Features: Corrosion resistant to various corrosive substances. Operating temperature: -30°C to +70°C, temporarily up to +90°C. Load capacity is reduced above +40°C.

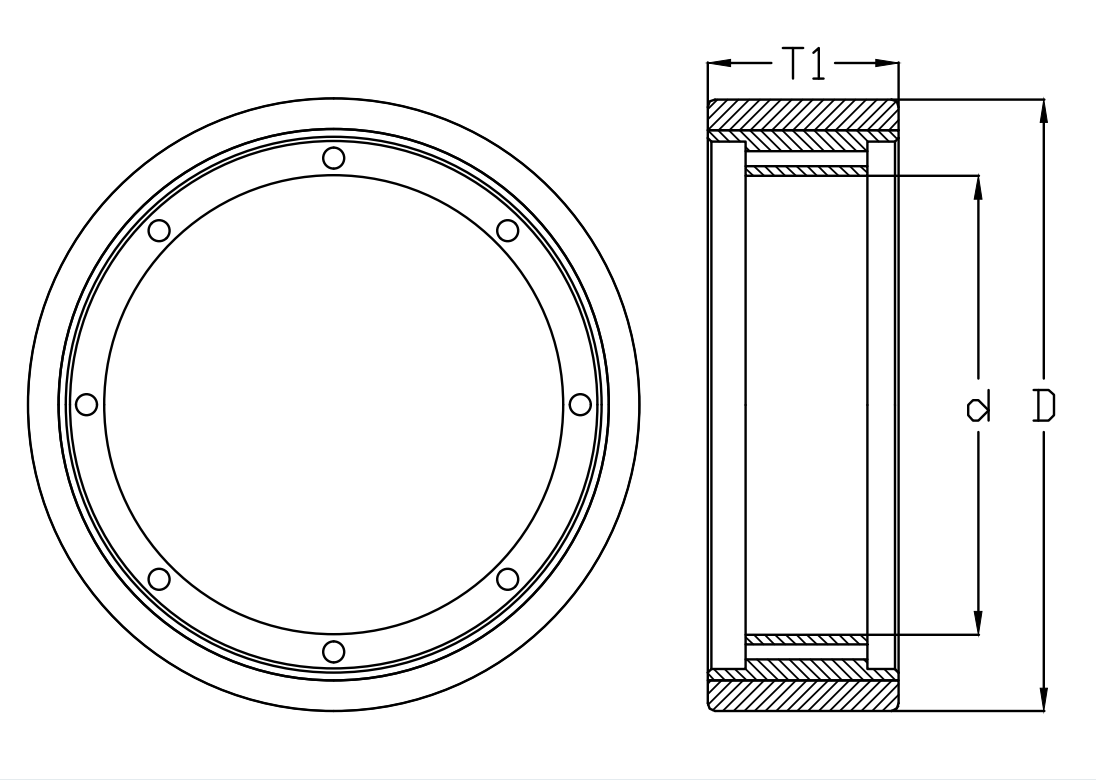

| Single wheel | Wheel diameter (D) mm | Wheel width (T2) mm | Load capacity at 4 km/h (kg) | Load capacity at 10 km/h (kg) | Number of mounting holes | Mounting hole diameter | Center hole diameter (d) mm | PCD /> (mm) | ||||||||||
| GSFC 100/40 | 100 | 40 | 300 | / | Customization Available | |||||||||||||
| GSFC 125/40 | 125 | 40 | 350 | / | Customization Available | |||||||||||||
| GSFC 150/50 | 150 | 50 | 450 | 180 | Customization Available | |||||||||||||
| GSFC 180/50 | 180 | 50 | 650 | 240 | Customization Available | |||||||||||||
| GSFC 200/50 | 200 | 50 | 700 | 300 | Customization Available | |||||||||||||
| GSFC 250/50 | 250 | 50 | 850 | 320 | Customization Available | |||||||||||||
| GSFC 300/60 | 300 | 60 | 1100 | 450 | Custom sizes available | |||||||||||||
| Other sizes available upon request | ||||||||||||||||||
