GEFC Series-Polyurethane Flanged Drive Wheel

Drive Wheels with Eamflex Polyurethane Tread

Tread Encapsulation Hardness

93 Shore A
Protect the ground/walking noise

good
Rolling resistance

Very good
Wear resistance capacity

Outstanding

Introduction


Tread: The high-quality polyurethane elastomer cast through chemical reaction has A hardness of 93±3 Shore A. It has low walking noise, small rolling resistance, protects the ground, is highly wear-resistant, has high resistance to cutting and tearing, leaves no marks, does not stain, and has an excellent bonding effect with the wheel core.

Wheel core: Metal materials such as 45# steel, cast iron, die-cast aluminum alloy, and stainless steel can be selected according to the working conditions. Surface treatment options include painting, phosphating, galvanizing, Dacromet, etc

Other features: Resistant to corrosion by various corrosive substances; Operating temperature: -30°C to +70°C, short-term up to +90° C. Load capacity decreases above +40°C

Technical parameters

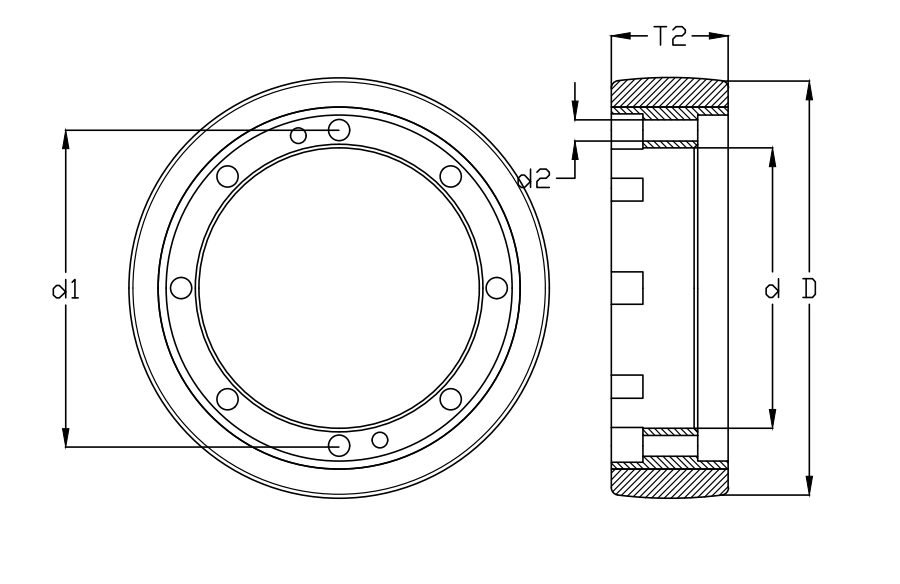

Single Wheel	Single Wheel Diameter (D) {MM}	Single Wheel Width (T2) {MM}	Load Capacity at 4 km/h [kg]	Load Capacity at 10 km/h [kg]	Load Capacity at 16 km/h [kg]	Number of Mounting Holes	Mounting Hole Diameter (d2) [mm]	Center Hole Diameter (d) [mm]	PCD (d1) [mm]
GEFC 200/50	200	50	900	630	360	Customization Available

GEFC 250/60	250	60	1300	910	520	Customization Available

GEFC 250/80	250	80	1600	1100	640	Customization Available

GEFC 300/90	300	90	2100	1450	840	Customization Available

GEFC 400/100	400	100	3400	2350	1350	Customization Available

Inquiry for other sizes is welcome
