93 Shore A
good
Very good
Outstanding
Tread: High-quality polyurethane elastomer cast through chemical reaction, with a hardness of 93±3 Shore A. It features low walking noise, low rolling resistance, ground protection, excellent wear resistance, high cut and tear resistance, and is non-marking, non-staining, and has excellent adhesion to the wheel hub.
Wheel Hub: Available in 45# steel, cast iron, die-cast aluminum alloy, stainless steel, and other metal materials depending on the working conditions; surface treatments include painting, phosphating, galvanizing, and Dacromet coating.
Other Characteristics: Resistant to various corrosive substances; operating temperature: -30°C to +70°C, short-term up to +90°C; load capacity decreases above +40°C.

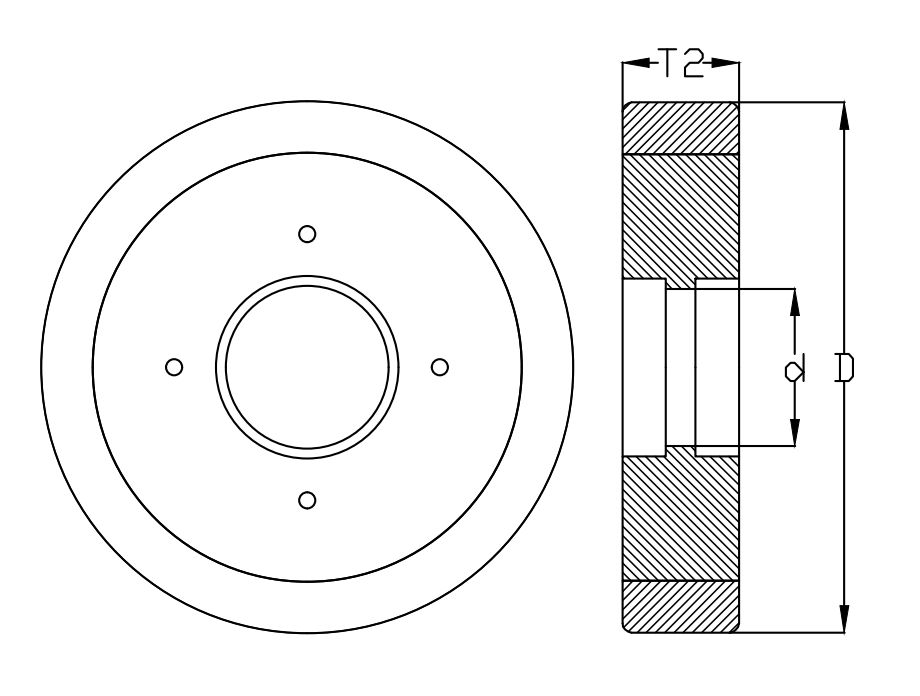

| Single Wheel | Wheel Diameter | Wheel Width | Load Capacity at 4km/h | Load Capacity at 10km/h (kg) | Mounting Hole Shape | Number of Mounting Holes | Mounting Hole Size | |||||||||||
| (D) mm | (T2) mm | (kg) | ||||||||||||||||
| GEFN 250*50 | 250 | 50 | 1250 | 620 | Customization Acceptable | |||||||||||||
| GEFN 250*60 | 250 | 60 | 1500 | 750 | Customization Acceptable | |||||||||||||
| GEFN 300*45 | 300 | 45 | 1300 | 650 | Customization Acceptable | |||||||||||||
| GEFN 300*80 | 300 | 80 | 2400 | 1200 | Customization Acceptable | |||||||||||||
| GEFN 300*100 | 300 | 100 | 3000 | 1500 | Customization Acceptable | |||||||||||||
| GEFN 360*75 | 360 | 75 | 2500 | 1250 | Customization Acceptable | |||||||||||||
| GEFN 360*100 | 360 | 100 | 3600 | 1800 | Customization Acceptable | |||||||||||||
| GEFN 400*80 | 400 | 80 | 3000 | 1500 | Customization Acceptable | |||||||||||||
| GEFN 400*125 | 400 | 125 | 5000 | 2500 | Customization Acceptable | |||||||||||||
| GEFN 500*100 | 500 | 100 | 5000 | 2500 | Customization Acceptable | |||||||||||||
| GEFN 600*125 | 600 | 125 | 10000 | 5000 | Customization Acceptable | |||||||||||||
| GEFN 600*200 | 600 | 200 | 12000 | 6000 | Customization Acceptable | |||||||||||||
| GEFN 750*200 | 750 | 200 | 15000 | 7500 | Customization Acceptable | |||||||||||||
| GEFN 1000*300 | 1000 | 300 | 30000 | 15000 | Customization Acceptable | |||||||||||||
| Other Sizes Available Upon Request | ||||||||||||||||||
Standard warranty is 12 months. For confirmed quality issues, we provide free replacement or full refund.
35 years in polyurethane wheel manufacturing, 52 patents, products exported to 40+ countries.
MOQ: Standard products 100 pcs. Samples: Standard products 1-3 pcs. Sample lead time: 30 days.
T/T, L/C, PayPal. New clients: 30% deposit + 70% before shipment.
On-time delivery rate: 98%+. In-stock standard products: 3-7 working days.
Choose polyurethane for heavy load and high frequency. Choose rubber for light load and cost priority.
Standard series: 50kg – 10 tons/wheel, maximum 15m/s.
Full customization available for diameter, width, hardness, color and more.
