HEE Series-Polyurethane Guide Wheel（Nickel Plating）

Tread Encapsulation Hardness

93 Shore A
Protect the ground/walking noise

good
Rolling resistance

Very good
Wear resistance capacity

Outstanding

Introduction
Specification
Faq
More Products

Introduction

Tread: High-quality polyurethane elastomer cast via chemical reaction, with a hardness of 93±3 Shore A. Low running noise, low rolling resistance, protects the ground, is highly wear-resistant, has high cut and tear resistance, is non-marking and non-staining, and has excellent adhesion to the wheel hub.

Wheel Hub: Bearing brand can be specified; C&U is the default.

Other characteristics: Resistant to corrosion from various corrosive substances; operating temperature: -30°C to +70°C, short-term up to +90°C; load capacity decreases above +40°C.

Specification

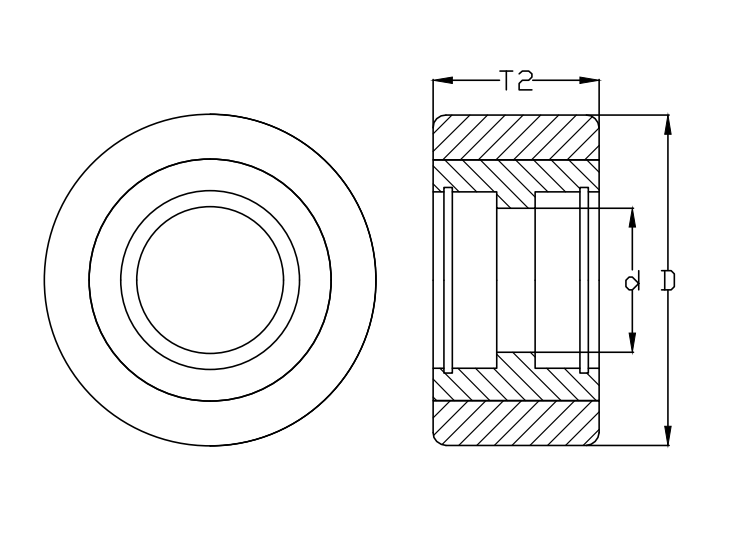

Bearing rubber-coated wheel	Wheel diameter (D) mm	Wheel width (T2) mm	Load capacity (kg)	Ball bearing	Shaft hole diameter (d) mm	Clamping length (T5) mm
HEE 36/13-6200	36	13	45	6200 2RS	10	9
HEE 40/20-6200	40	20	50	6200 2RS	10	9
HEE 45/20-6202	45	20	80	6202 2RS	15	11
HEE 60/20-6203	60	20	90	6203 2RS	17	12
HEE 50/15-6301	50	15	75	6301 2RS	12	12
HEE 62/15-6004	62	15	100	6004 2RS	20	12
HEE 75/20-6204	75	18	120	6204 2RS	20	14
HEE 70/20-6205	75	20	150	6205 2RS	25	15
For other sizes, please inquire
