VEI Series-Polyurethane Driven Wheel

Driven Wheels with Eamflex Polyurethane Tread

Tread Encapsulation Hardness

93 Shore A
Protect the ground/walking noise

Very good
Rolling resistance

Very good
Wear resistance capacity

Outstanding

Introduction
Specification
Faq
More Products

Introduction

Tread:The high-quality polyurethane elastomer cast by chemical reaction has a hardness of 95 Shore A, low walking noise, low rolling resistance, ground protection, very wear-resistant, high cutting and tearing strength, no trace, no dyeing, and excellent bonding effect with the wheel core.

Wheel core:45 # steel, cast iron, die-casting aluminum alloy, stainless steel and other metal materials can be selected according to the working conditions; the surface treatment can be selected from painting, phosphating, galvanizing, blackening, etc.

Other features:Resistant to various corrosive substances; working temperature:-30°CTo+70°C, short time up to+90°C, load capacity in+40°CDecrease above

Specification

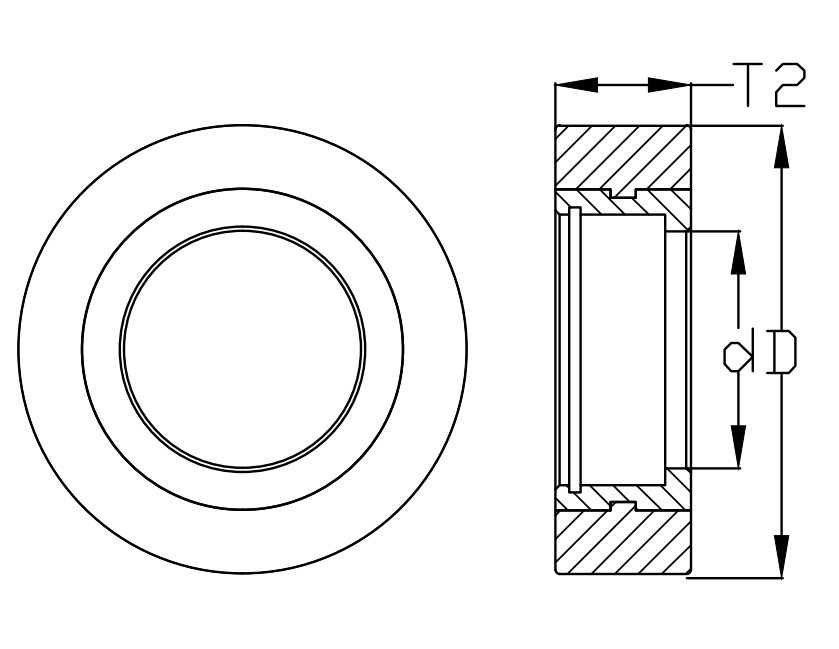

Single wheel	Single wheel diameter (D)[mm]	Single wheel Width (T2) [mm]	Negative at 4km/HLoading capacity [kg]	10Load capacity in km/H [kg]	Bearing type	Shaft hole diameter (d)[mm]	Hub Length (T1)[mm]
Single wheel	VEI 35/27	35	27	100	One	Ball bearing	6	30
VEI 50/33	50	33	150	One	Ball bearing	8	36
VEI 60/35	60	35	200	One	Ball bearing	15	35
VEI 60/60	60	60	320	One	Ball bearing	10	60
VEI 65/40	65	40	250	One	Ball bearing	15	40
VEI 75/40	75	40	270	One	Ball bearing	20	40
VEI 80/40	80	40	280	One	Ball bearing	20	40
VEI 80/70	80	70	500	-	Ball bearing	20	70
VEI 100/40	100	40	450	One	Ball bearing	15	40
VEI 100/50	100	50	600	One	Ball bearing	20	50
VEI 100/50	100	50	600	One	Ball bearing	20	60
VEI 125/40	125	40	550	One	Ball bearing	15	45
VEI 125/50	125	50	700	350	Ball bearing	20	50
VEI 125/50	125	50	700	350	Ball bearing	20	60
VEI 125/50	125	50	700	350	Ball bearing	25	50
VEI 140/54	140	54	900	450	Ball bearing	20	60
VEI 150/50	150	50	800	400	Ball bearing	20	50
VEI 150/50	150	50	800	400	Ball bearing	20	60
VEI 160/50	160	50	800	400	Ball bearing	20	60
VEI 160/50	160	50	800	400	Ball bearing	25	60
VEI 175/50	175	50	875	430	Ball bearing	20	60
VEI 175/50	175	50	875	430	Ball bearing	25	60
VEI 175/80	175	80	1300	650	Ball bearing	25	80
VEI 180/40	180	40	800	400	Ball bearing	25	40
VEI 180/65	180	65	1100	550	Ball bearing	25	75
VEI 200/50	200	50	1000	500	Ball bearing	20	60
VEI 200/50	200	50	1000	500	Ball bearing	25	60
VEI 200/60	200	60	1400	700	Ball bearing	25	60
VEI 200/80	200	80	1600	800	Ball bearing	25	90
VEI 200/80	200	80	1600	800	Ball bearing	30	90
VEI 200/80	200	80	1600	800	Ball bearing	35	90
Please inquire about other sizes.
