GEFL Series-Polyurethane Flanged Drive Wheel

All Categories
POLYURETHANE DRIVE WHEEL

POLYURETHANE DRIVE WHEEL

GEFL Series-Polyurethane Flanged Drive Wheel

  • Rolling resistance

    Rolling resistance

    93 Shore A

  • Wear resistance capacity

    Wear resistance capacity

    good

  • Tread Encapsulation Hardness

    Tread Encapsulation Hardness

    Very good

  • Protect the ground/walking noise

    Protect the ground/walking noise

    Outstanding

Introduction

Tread: High-quality polyurethane elastomer cast through chemical reaction, with a hardness of 93±3 Shore A. It features low walking noise, low rolling resistance, ground protection, excellent wear resistance, high cut and tear resistance, and is non-marking, non-staining, and has excellent adhesion to the wheel hub.

Wheel Hub: Available in 45# steel, cast iron, die-cast aluminum alloy, stainless steel, and other metal materials depending on the working conditions; surface treatments include painting, phosphating, galvanizing, and Dacromet coating.

Other Characteristics: Resistant to various corrosive substances; operating temperature: -30°C to +70°C, short-term up to +90°C; load capacity decreases above +40°C.

Specification

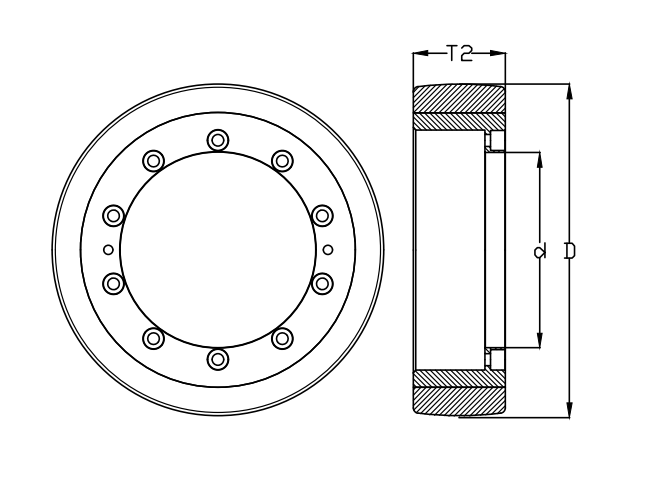

Single WheelWheel Diameter
(D) mm
Wheel Width
(T2) mm
Load Capacity at 4km/h
(kg)
Load Capacity at 10km/h (kg)Mounting Hole ShapeNumber of Mounting HolesMounting Hole Size
GEFL 250*5010040400/Customizable
GEFL 250*6012540450/Customizable
GEFL 300*4515040650300Customizable
GEFL 300*8016540750350Customizable
GEFL 300*10018050850420Customizable
GEFL 360*7520050900450Customizable
GEFL 360*100200801400700Customizable
GEFL 400*80250801800900Customizable
GEFL 400*12525010022001100Customizable
GEFL 500*10030010027001350Customizable
GEFL 600*1253508022001100Customizable
GEFL 600*20040010034001700Customizable
GEFL 750*20045015065003000Customizable
Other sizes are available upon request

Frequently Asked Questions?

Standard warranty is 12 months. For confirmed quality issues, we provide free replacement or full refund.

35 years in polyurethane wheel manufacturing, 52 patents, products exported to 40+ countries.

MOQ: Standard products 100 pcs. Samples: Standard products 1-3 pcs. Sample lead time: 30 days.

T/T, L/C, PayPal. New clients: 30% deposit + 70% before shipment.

On-time delivery rate: 98%+. In-stock standard products: 3-7 working days.

Choose polyurethane for heavy load and high frequency. Choose rubber for light load and cost priority.

Standard series: 50kg – 10 tons/wheel, maximum 15m/s.

Full customization available for diameter, width, hardness, color and more.
