Tread:The high-quality polyurethane elastomer cast by chemical reaction has a hardness of 95 Shore A, low walking noise, low rolling resistance, ground protection, very wear-resistant, high cutting and tearing strength, no trace, no dyeing, and excellent bonding effect with the wheel core.
Wheel core:45 # steel, cast iron, die-casting aluminum alloy, stainless steel and other metal materials can be selected according to the working conditions; the surface treatment can be selected from painting, phosphating, galvanizing, blackening, etc.
Other features:Resistant to various corrosive substances; working temperature:-30°CTo+70°C, short time up to+90°C, load capacity in+40°CDecrease above

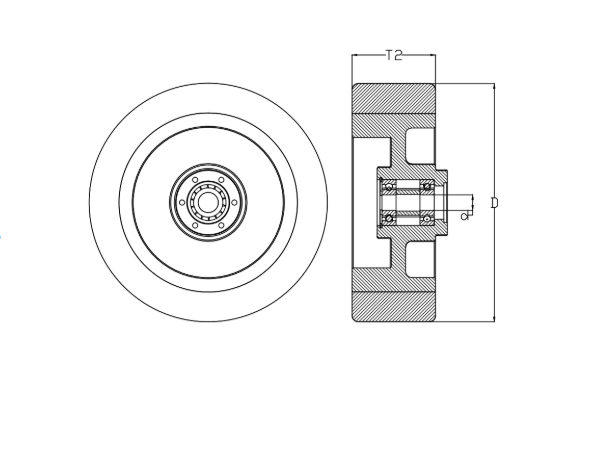

| Single wheel | Single wheel diameter (D)[mm] | Single wheel Width (T2) [mm] | Negative at 4km/HLoading capacity [kg] | 10Load capacity in km/H [kg] | Bearing type | Shaft hole diameter (d)[mm] | Hub Length (T1)[mm] |
| qqqq 35/27 | 35 | 27 | 100 | One | Ball bearing | 6 | 30 |
| qqqq 50/33 | 50 | 33 | 150 | One | Ball bearing | 8 | 36 |
| QQQQ 60/35 | 60 | 35 | 200 | One | Ball bearing | 15 | 35 |
| KCDL 60/60 | 60 | 60 | 320 | One | Ball bearing | 10 | 60 |
| QQQQ 65/40 | 65 | 40 | 250 | One | Ball bearing | 15 | 40 |
| KCDL 75/40 | 75 | 40 | 270 | One | Ball bearing | 20 | 40 |
| KCDL 80/40 | 80 | 40 | 280 | One | Ball bearing | 20 | 40 |
| KCDL 80/70 | 80 | 70 | 500 | - | Ball bearing | 20 | 70 |
| KCDL 100/40 | 100 | 40 | 450 | One | Ball bearing | 15 | 40 |
| KCDL 100/50/50 | 100 | 50 | 600 | One | Ball bearing | 20 | 50 |
| KCDL 100/50/60 | 100 | 50 | 600 | One | Ball bearing | 20 | 60 |
| KCDL 125/40 | 125 | 40 | 550 | One | Ball bearing | 15 | 45 |
| KCDL 125/50/50 | 125 | 50 | 700 | 350 | Ball bearing | 20 | 50 |
| KCDL 125/50/60 | 125 | 50 | 700 | 350 | Ball bearing | 20 | 60 |
| KCDLU 125/50/50 | 125 | 50 | 700 | 350 | Ball bearing | 25 | 50 |
| KCDL 140/54 | 140 | 54 | 900 | 450 | Ball bearing | 20 | 60 |
| KCDL 150/50/50 | 150 | 50 | 800 | 400 | Ball bearing | 20 | 50 |
| KCDL 150/50/60 | 150 | 50 | 800 | 400 | Ball bearing | 20 | 60 |
| KCDL 160/50/20 | 160 | 50 | 800 | 400 | Ball bearing | 20 | 60 |
| KCDL 160/50/25 | 160 | 50 | 800 | 400 | Ball bearing | 25 | 60 |
| KCDL 175/50/20 | 175 | 50 | 875 | 430 | Ball bearing | 20 | 60 |
| KCDL 175/50/25 | 175 | 50 | 875 | 430 | Ball bearing | 25 | 60 |
| KCDL 175/80 | 175 | 80 | 1300 | 650 | Ball bearing | 25 | 80 |
| KCDL 180/40 | 180 | 40 | 800 | 400 | Ball bearing | 25 | 40 |
| KCDL 180/65 | 180 | 65 | 1100 | 550 | Ball bearing | 25 | 75 |
| KCDL 200/50/20 | 200 | 50 | 1000 | 500 | Ball bearing | 20 | 60 |
| KCDL 200/50/25 | 200 | 50 | 1000 | 500 | Ball bearing | 25 | 60 |
| KCDL 200/60 | 200 | 60 | 1400 | 700 | Ball bearing | 25 | 60 |
| KCDL 200/80/25 | 200 | 80 | 1600 | 800 | Ball bearing | 25 | 90 |
| KCDL 200/80/30 | 200 | 80 | 1600 | 800 | Ball bearing | 30 | 90 |
| KCDL 200/80/35 | 200 | 80 | 1600 | 800 | Ball bearing | 35 | 90 |
| Please inquire about other sizes. | |||||||
Standard warranty is 12 months. For confirmed quality issues, we provide free replacement or full refund.
35 years in polyurethane wheel manufacturing, 52 patents, products exported to 40+ countries.
MOQ: Standard products 100 pcs. Samples: Standard products 1-3 pcs. Sample lead time: 30 days.
T/T, L/C, PayPal. New clients: 30% deposit + 70% before shipment.
On-time delivery rate: 98%+. In-stock standard products: 3-7 working days.
Choose polyurethane for heavy load and high frequency. Choose rubber for light load and cost priority.
Standard series: 50kg – 10 tons/wheel, maximum 15m/s.
Full customization available for diameter, width, hardness, color and more.
