VSB Series - Polyurethane Driven Wheel

Driven wheels with Saxflex polyurethane tread

Tread Encapsulation Hardness

75 Shore A
Protect the ground/walking noise

Very good
Rolling resistance

Very good
Wear resistance capacity

Very good

Introduction
Specification
Faq
More Products

Introduction

Tread: High-quality polyurethane elastomer cast by chemical reaction, hardness of 75±3 Shore A, very good floor protection, low noise operation, low rolling resistance, high resistance to cutting and tearing, no marks, no staining, excellent bonding effect with wheel core.

Wheel core: 45# steel, cast iron, die-cast aluminum alloy, stainless steel and other metal materials can be selected according to working conditions; surface treatment can be selected from spray painting, phosphating, galvanizing, Dacromet, etc.

Other characteristics: corrosion resistance to various corrosive substances; working temperature: -30°C to +70°C, short-term up to +90°C, load capacity reduced above +40°C

Specification

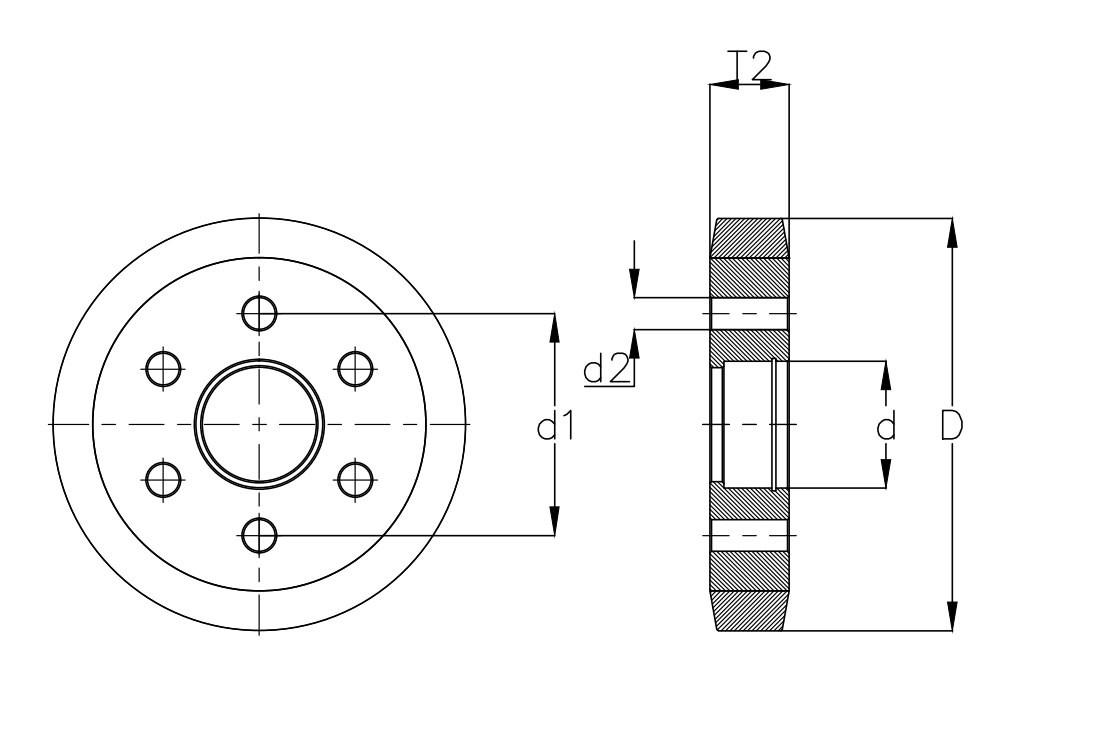

Driven Wheel	Single Wheel Diameter (D) mm	Single Wheel Width (T2) mm	Load Capacity at 4KM (kg)	Load Capacity at 10KM (kg)	Quantity of Mounting Holes	Mounting Hole Diameter (d2) [mm]	Center Hole Diameter (d) [mm]	PCD (d1) [mm]
VSB 75/40	75	40	200	/	Customization Acceptable
VSB 100/40	100	40	250	/	Customization Acceptable
VSB 125/50	125	50	400	150	Customization Acceptable
VSB 160/50	160	50	550	220	Customization Acceptable
VSB 180/50	180	50	620	245	Customization Acceptable
VSB 200/50	200	50	700	275	Customization Acceptable
VSB 200/80	200	80	1000	400	Customization Acceptable
VSB 250/80	250	80	1200	475	Customization Acceptable
VSB 300/80	300	80	1600	620	Customization Acceptable
VSB 360/75	360	75	1700	675	Customization Acceptable
VSB 400/80	400	80	2100	680	Customization Acceptable
For other sizes, please contact us for inquiry
